Product Description

Solid Birch Dovetail Drawers

FREE SHIPPING !!!
(With purchase of $1000 of this drawer model in any combination of sizes*)

Price above reflects price for a typical kitchen drawer of 3½"h x 15"w x 20"d, or smaller.
Your actual price may be higher based on drawer sizes and options selected.
Final price will be calculated and shown in your shopping cart

Solid 5/8" birch dovetail drawers, rollout shelves and high back rollout shelves at great prices and they ship in just 7-10 work days!

Quikdrawers offers a 5/8" solid finger joint White Birch drawer box program designed to address almost any drawer or pullout or rollout shelf need. These pre-finished drawer boxes which can be ordered with a variety of other options. (If you prefer "non-finger joint" drawers with wider staves for sides, take a look at our other solid wood drawers in Aspen and Hard Maple). All dimensions are outside dimensions.

Many of our institutional customers have discovered the value of this drawer for apartment, condominium and commercial properties, when a high quality, solid wood drawer is needed.


"How To Measure & Order New Or Replacement Drawers And Rollout Shelving & Pullout Trays"

How To Measure
How to measure
(Use outside dimensions)
How to size drawer for use with concealed, undermount drawer slides How to size drawer for use with side mounted, full extension, ball bearing drawer slides How to size drawer for use with side mounted, epoxy, Euro Style drawer slides
Sizing drawer for use with concealed undermount, soft close slide Sizing drawer for use with side mounted, full extension, ball bearing slide Sizing drawer for use with side mounted, partial extension, Euro Style slide

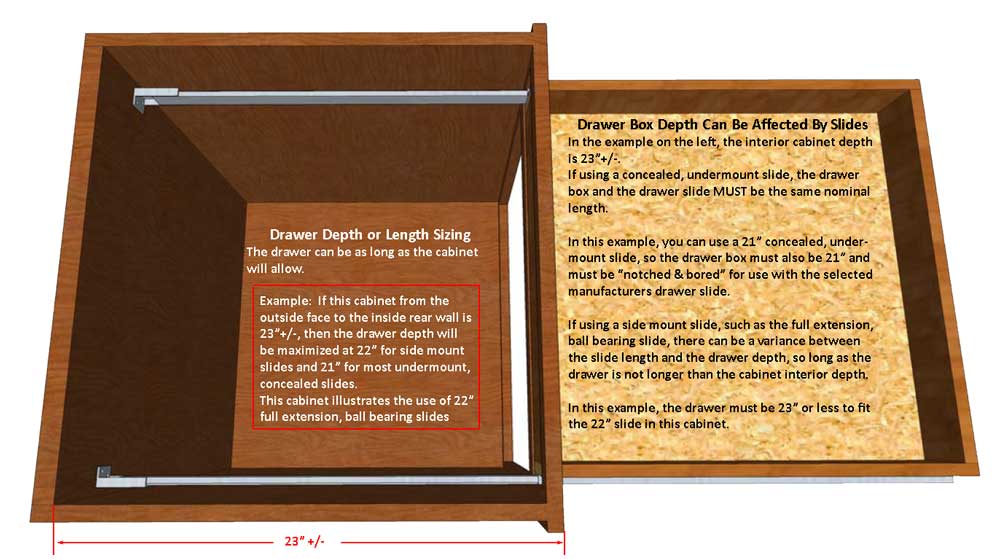

Sizing the Depth For New or Replacement Drawer
How to size your new or replacement drawer
(click image to open in new window)

Drawer box and rollout shelf construction

Drawer boxes are constructed with 5/8" thick pre-finished solid wood sides, dovetail joints on all four corners and a standard matching 1/4" thick B-3 grade plywood bottom.  1/2" bottoms are available as an upgrade.  All material used is of Standard Grade and will consist of natural birch color of the species selected.  Mineral, color and grain variation is allowed and some finger joints may be visible (on top edge only, never on front piece).

Some companies will tell you that dovetail joints, solid wood and a UV clear coat finish is not important...  That's because they can't offer it, especially at these prices!

All bottoms are recessed 1/2" and all sides have 1/4" eased edges.  Drawer boxes are shipped pre-assembled.  Notching for undermount slides is available (release clips are not supplied unless ordered with our Vitus Under-mount slide).  We strongly recommend a 1/2" thick bottom if your drawer box or rollout shelf is 24" or wider.

Drawer Bottoms Are Inserted Into Dado Groove For Strength
Drawer Box Side Material Drawer Box Side Material dado groove construction
Standard bottom recess on all drawers will allow for use with modern undermount, concealed slides Dado inset bottom for superior strength and load bearing capacity

Every drawer and rollout is branded... your guarantee of quality!
(OEM and trade customers only may request "No Logo")
QuikDrawers Logo White Birch finger jointed wood
White Birch Drawer White Birch Drawer

Drawer Box Ordering Parameters

  Minimum Maximum Increments
Height 2" 12" 2", 2.5", 3", 3.5", 4", 5", 6", 7",
8", 9", 9.5", 10", 11" & 12"
Width 4-1/2" 50-15/16" 1/16"
Depth 6-1/2" 50-15/16" 1/16"

Maximum height for rollout and high back rollouts is 10"
Drawer boxes over 36" width or depth will be shipped at higher weights due to dimensional weight rules set by carriers


Drawer Box Types

  • Our standard drawer box is designed for new construction or replacement of missing or broken drawer boxes.
  • Our Rollout Drawer box is designed for any storage need and with the attractive scoop cut, "galley handle" can be used in stacks and under counter applications.
  • Our High Back Rollout Drawer has feature of both the standard drawer box, rollout drawer box and adds the "High Back" option for applications where you may be concerned about pullout shelving contents tipping over.  Regardless of selected rear height, the front will always be 3" high, allowing for easy viewing of the contents.
Standard drawer box configuration Rollout box configuration High back drawer box configuration
Standard *Rollout **High Back
(see note below)
*Scoop handle is 1" x 5" and is standard with Rollout or High Back Rollout boxes.
**When ordering the high back drawer, the height of the box is the rear "high side" and has a minimum of 6". The front height is 3" regardless. Maximum height for rollouts and High Back is 10"

Optional Undermount Notching

Optional undermount notching is based on standard manufacturers requirements and is only available for modern, undermount slide configurations as shown below. (Selecting this option above does not include the slide)  We do NOT offer or perform custom notching or boring.

Rear notching for Undermount Concealed Slides (no changes allowed)
Drawer boxes can be notched and bored for popular undermount slides
Rear notching Specifications (no alterations)
Drawer boxes can be notched and bored for popular undermount slides
(Click to enlarge)

Our standard drawer box lead time is just 7-10 work days and may be affected by workload and other conditions not under our control.  This is not a guarantee of production timeframes.


Choosing Drawer Slides for Your Drawer

If you are also changing drawer slides or adding a new drawer and you need some information about choosing drawer slides or how to size your drawer for your drawer slides, click on this link: Choosing drawer slides for your new or replacement drawer box


Optional Drawer Front Screws

You may choose to include the optional screws for attaching your drawer front to your drawer.  If you do, please read the Drawer Front Screw webpage for important information.  We do NOT drill the holes in the drawer for your drawer front screws.


QuikDrawers Limited Lifetime Warranty

QuikDrawers Lifetime warranty is for defects in materials and craftsmanship for the original purchaser.  This limited lifetime warranty for QuikDrawers custom drawers has specific conditions and exclusions.  Please see Warranty Information page for details.


If you have questions about these options or specifications, just give us a call at

1-866-937-7429 (Mon-Fri 8am - 5pm, Sat 8am until Noon, central time)


*Some conditions apply.  Drawers may not be combined with other items for free shipping.  Products purchased along with drawers will be charged appropriate shipping for those items.  Contact Sales for other details.  Read shipping guidelines.




  • Model: 58Birch.HR
  • Shipping Weight: 8lbs
  • 89711 Units in Stock
  • Manufactured by: Hardware Resources
