QuikCAB Single Door Base Cabinet Available Sizes
| Single Door Base Cabinets - Available Sizes | ||||||||||||||
| Cabinet Design Style |
Model # (Click Model # below for cabinet image) |
Overall Dimensions | # of Doors |
# of Drawers |
Door Opening | Drawer Opening | Door Size | Drawer Front Size | ||||||
| Width | Height | Depth | Width | Height | Width | Height | Width | Height | Width | Height | ||||

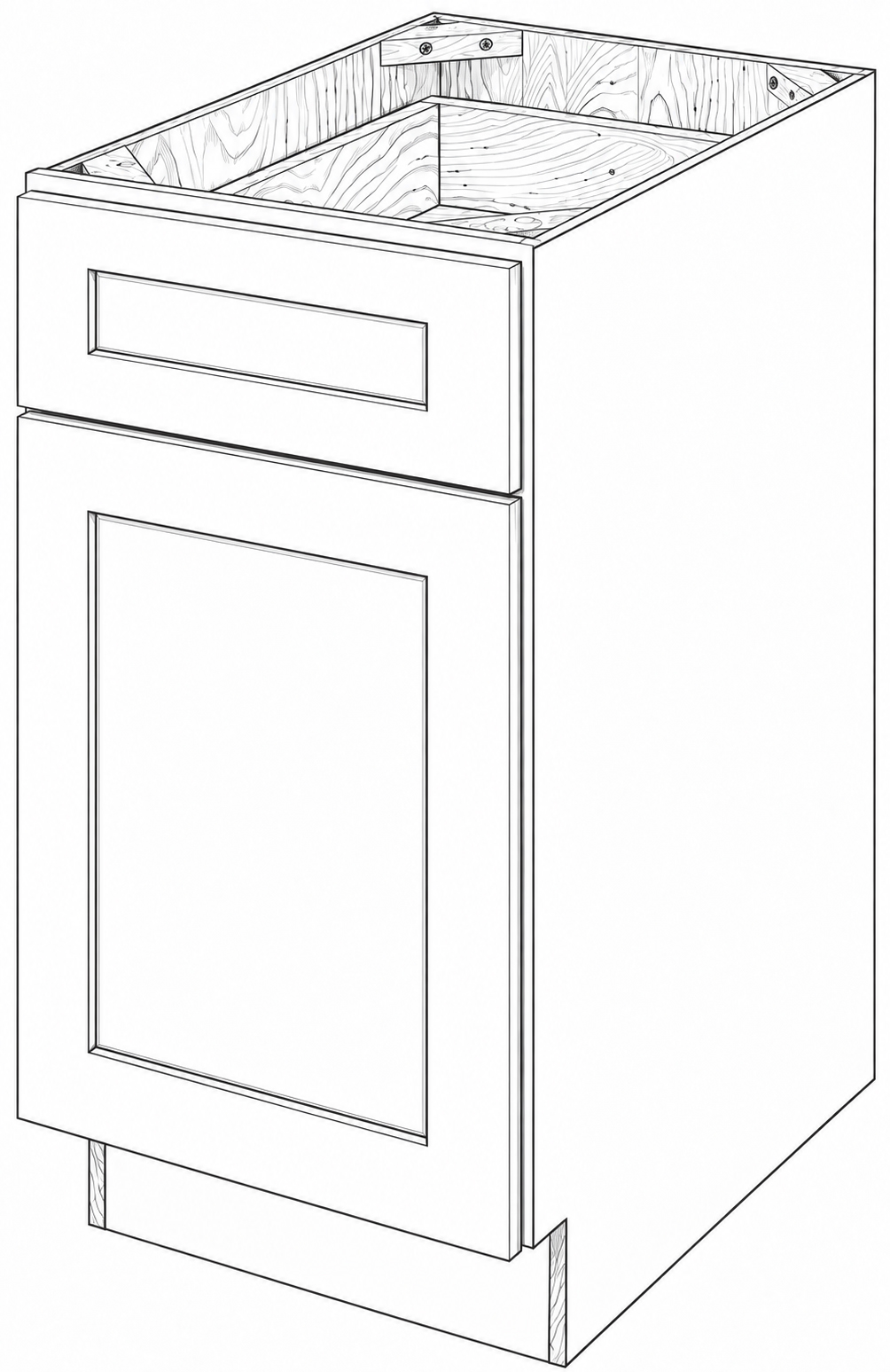

 ("B" - With Drawer) |

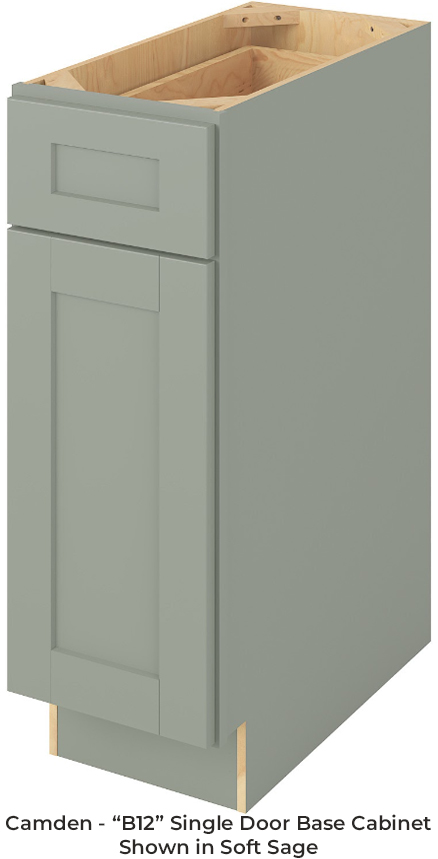

B12 | 12" | 34 1/2" | 24" | 1 | 1 | 9" | 20 1/2" | 9" | 5" | 11 17/32" | 22 27/32" | 11 17/32" | 6 7/32" |

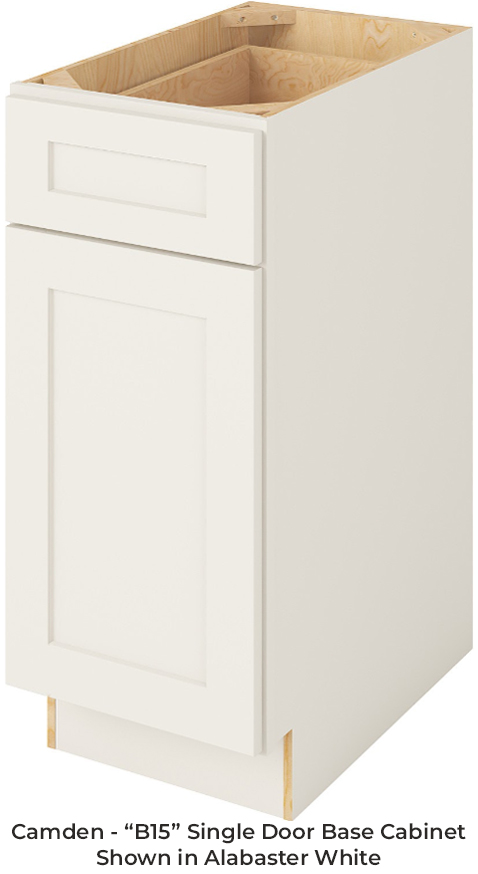

| B15 | 15" | 34 1/2" | 24" | 1 | 1 | 12" | 20 1/2" | 12" | 5" | 14 17/32" | 22 27/32" | 14 17/32" | 6 7/32" | |

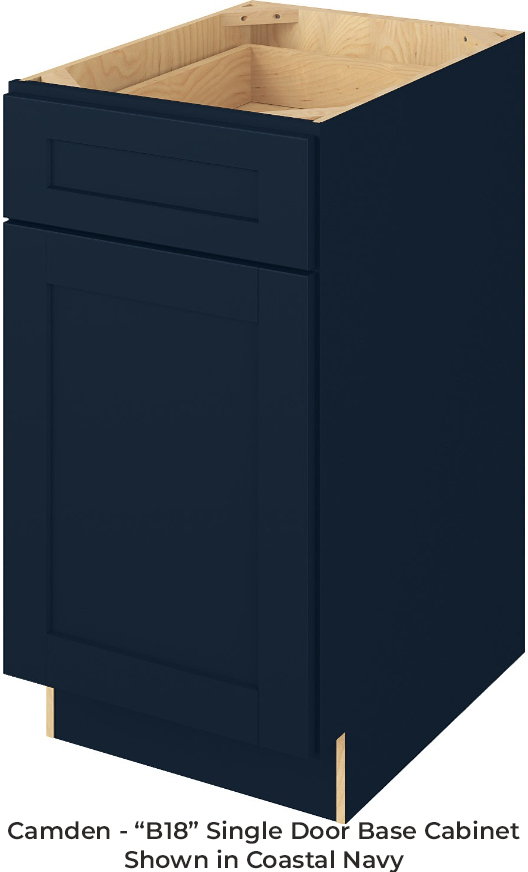

| B18 | 18" | 34 1/2" | 24" | 1 | 1 | 15" | 20 1/2" | 15" | 5" | 17 17/32" | 22 27/32" | 17 17/32" | 6 7/32" | |

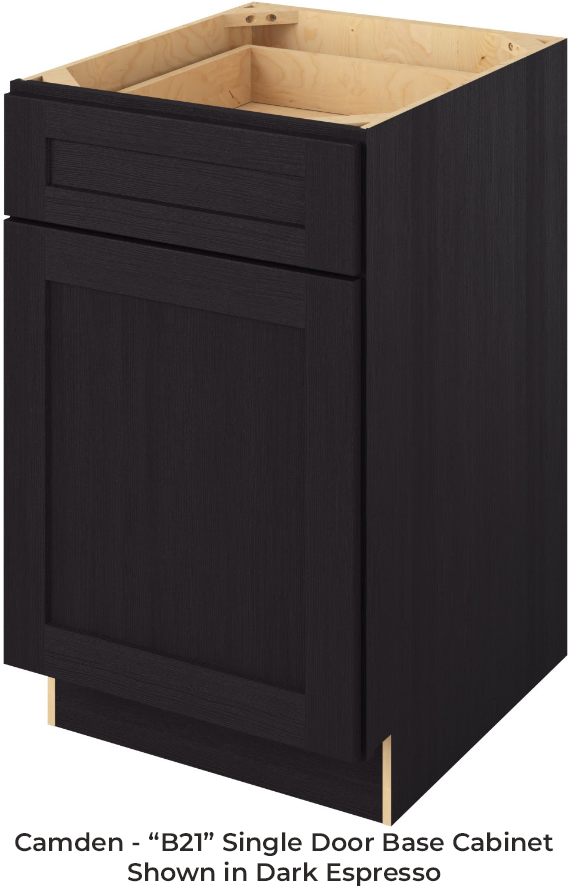

| B21 | 21" | 34 1/2" | 24" | 1 | 1 | 18" | 20 1/2" | 18" | 5" | 20 17/32" | 22 27/32" | 20 17/32" | 6 7/32" | |

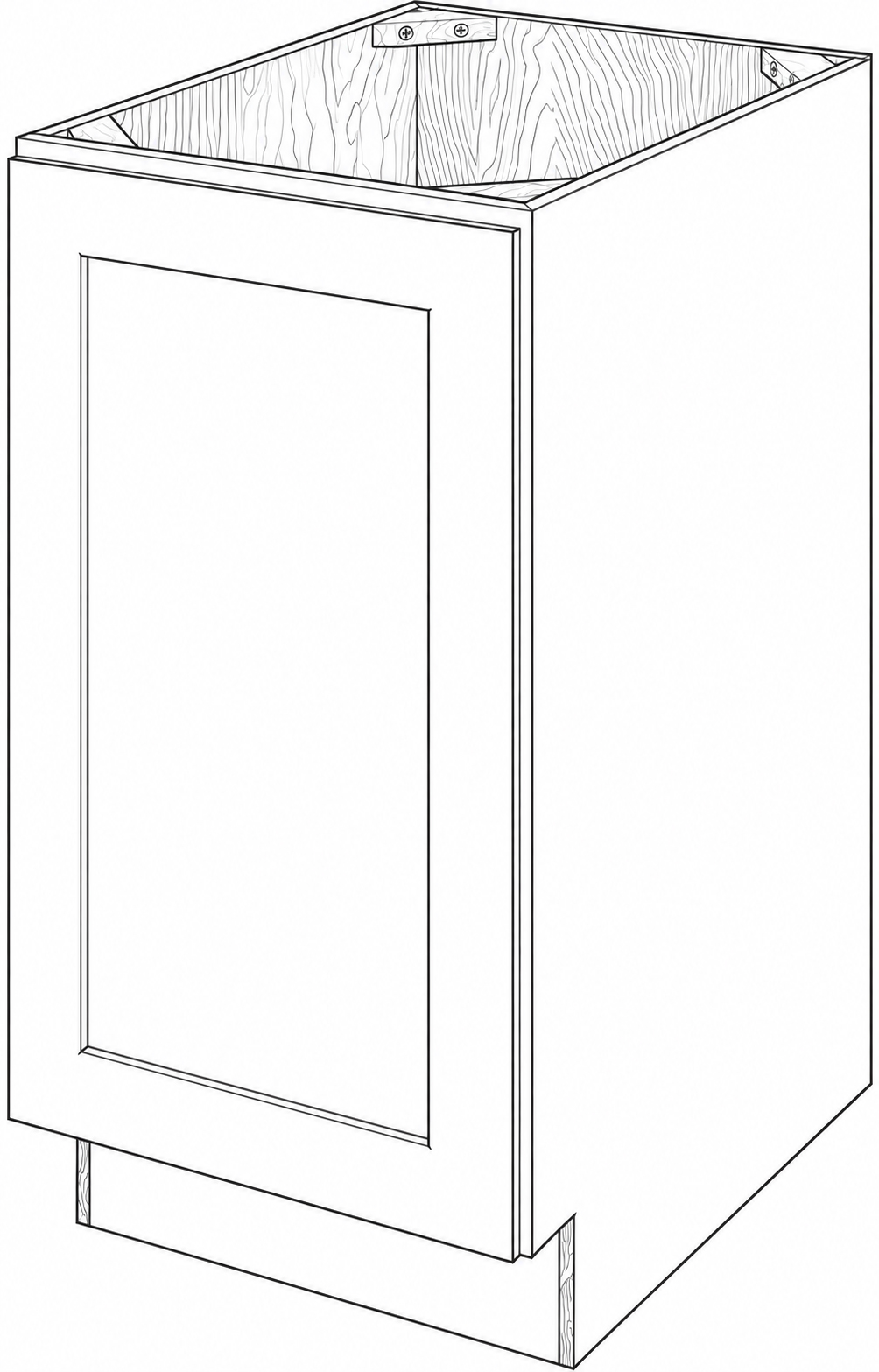

 ("BFH" - Full Height Door - No Drawer) |

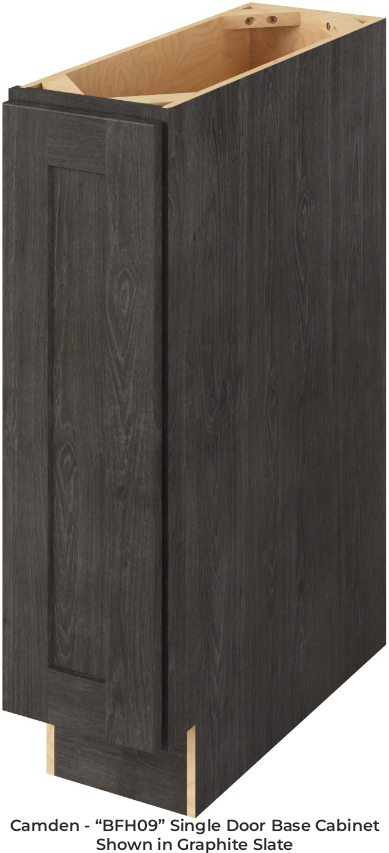

BFH09 | 9" | 34 1/2" | 24" | 1 | 0 | 6" | 27" | - | - | 8 17/32" | 29 9/32" | - | - |

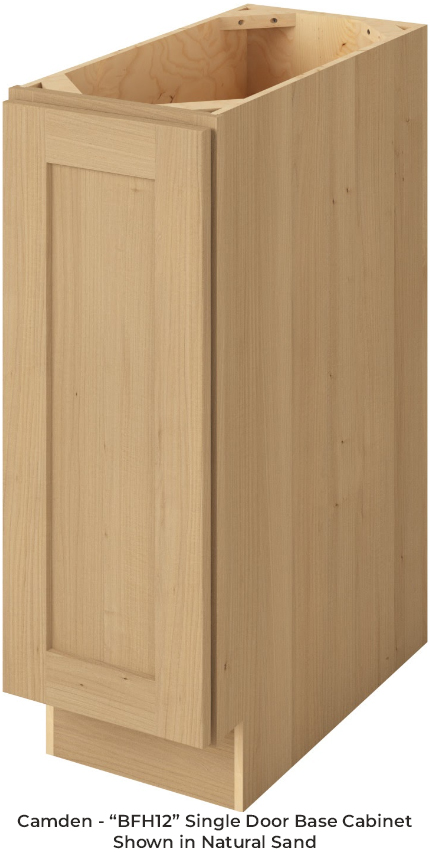

| BFH12 | 12" | 34 1/2" | 24" | 1 | 0 | 9" | 27" | - | - | 11 17/32" | 29 9/32" | - | - | |

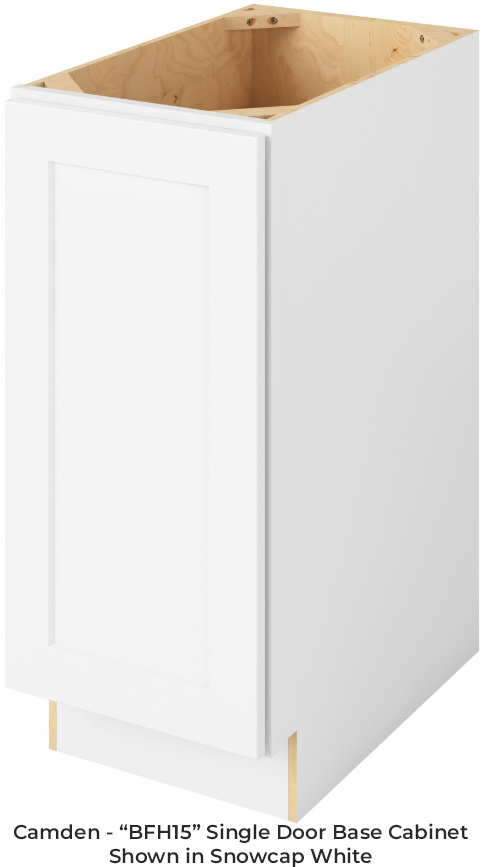

| BFH15 | 15" | 34 1/2" | 24" | 1 | 0 | 12" | 27" | - | - | 14 17/32" | 29 9/32" | - | - | |

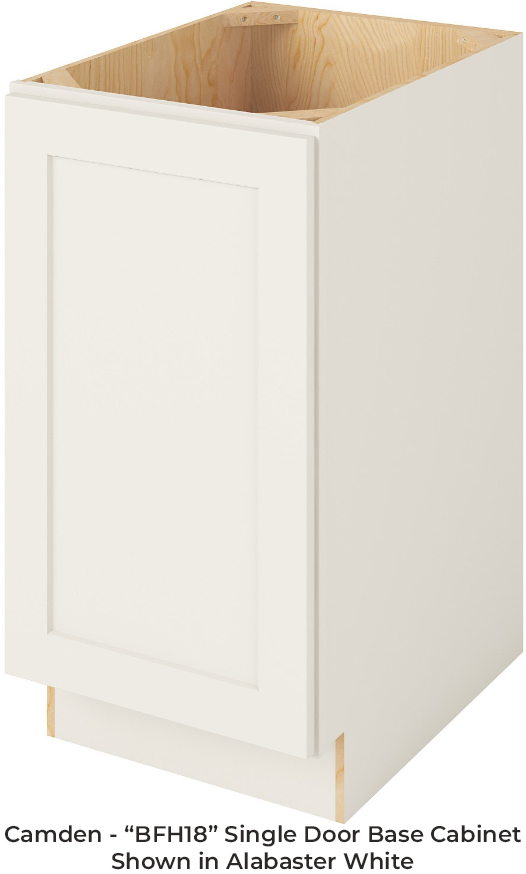

| BFH18 | 18" | 34 1/2" | 24" | 1 | 0 | 15" | 27" | - | - | 17 17/32" | 29 9/32" | - | - | |
| To View Our Full Catalog Spec Guide For RTA Cabinets, CLICK HERE. | ||||||||||||||
