Custom 1/2" Birch Plywood Dovetail Drawers

Item # 14594


Please Choose Or Scroll Down For More Info:













Starting at: $33.00  / Each

Add to Cart:

Product Description

1/2" Birch Plywood Dovetail Drawers

CURRENT LEAD TIMES, APPROX 3 weeks

Price above reflects price for a typical kitchen drawer of 3½"h x 15"w x 20"d, or smaller.
Your actual price may be higher based on drawer sizes and options selected.
Final price will be shown in your shopping cart

QuikDrawers offers 1/2" birch plywood dovetail drawers at great prices and we ship in just 7-10 work days!

Drawer heights are available in sizes from 2" to 10", as shown in the pulldown menus above.


"How To Measure & Order New Or Replacement Drawers And Rollout Shelving & Pullout Trays"

How To Measure
How to measure
(Use outside dimensions)
How to size drawer for use with concealed, undermount drawer slides How to size drawer for use with side mounted, full extension, ball bearing drawer slides How to size drawer for use with side mounted, epoxy, Euro Style drawer slides
Sizing drawer for use with concealed undermount, soft close slide Sizing drawer for use with side mounted, full extension, ball bearing slide Sizing drawer for use with side mounted, partial extension, Euro Style slide
Sizing the Depth For New or Replacement Drawer
How to size drawer for various cabinet depths
(click image to open in new window)

Drawer box and rollout shelf construction

Drawer Box Side Material  Drawer Box Side Material dado groove construction
Standard bottom recess on all drawers will allow for use with modern undermount, concealed slides Dado inset bottom for superior strength and load bearing capacity

Every drawer and rollout is branded... your guarantee of quality!
(OEM and trade customers only may request "No Logo")
QuikDrawers Logo 1/2" Baltic Birch Plywood Drawers
Assures your warranty 1/2" Birch Plywood Drawer

Drawer Box Types

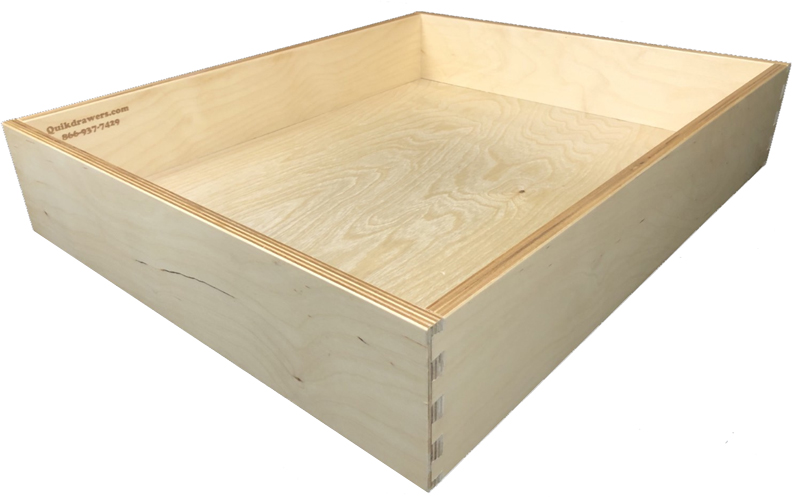

Standard drawer box configuration

Rollout box configuration High back drawer box configuration
Standard *Rollout **High Back
(see note below)
*Scoop handle is 1" x 5" and is standard with Rollout or High Back Rollout boxes.
**When ordering the high back drawer, the height of the box is the rear "high side" and has a minimum of 6".   The front height is 3" regardless. Maximum height for rollouts and High Back is 10"

Drawer Box Ordering Parameters

  Minimum Maximum Increments/Sizes
Height 2" 11" Available sizes: 2”, 2.5”, 3”, 3.5”, 4”, 5”, 6”, 7”, 8”, 9”, 10” or 11”
Width 5" 46" 1/16"
Depth 6-1/2"" 31" 1/16"

Maximum height for rollout and high back rollouts is 10"


Optional Undermount Notching

Optional undermount notching is based on standard manufacturers requirements and is only available for modern, undermount slide configurations as shown below.  (Selecting this option above does not include the slide)  We do NOT offer or perform custom notching or boring.

Rear notching for Undermount Concealed Slides (no changes allowed)
Drawer boxes can be notched and bored for popular undermount slides
Rear notching Specifications (no alterations)
Drawer boxes can be notched and bored for popular undermount slides
(Click to enlarge)

Our standard drawer box lead time is just 8-10 work days and may be affected by workload and other conditions not under our control.  This is not a guarantee of production timeframes.

All drawer boxes are constructed with 1/2" thick, 9 ply birch plywood sides and a standard matching 1/4" or 1/2" plywood bottom.  All material used is of Standard Grade and will consist of natural birch color.

All bottoms are recessed 1/2" and all sides have eased edges.  Drawer boxes are shipped pre-assembled.  Notching for undermount slides is available.    We recommend a 1/2" thick bottom if the drawer is 24" or wider.


Choosing Drawer Slides for Your Drawer

If you are also changing drawer slides or adding a new drawer and you need some information about choosing drawer slides or how to size your drawer for your drawer slides, click on this link: Optional Drawer Front Screws

Special washer head screws for attaching drawer fronts

You may choose to include the optional screws for attaching your drawer front to your drawer.  If you do, please read the Drawer Front Screw webpage for important information.  We do NOT drill the holes in the drawer for your drawer front screws.


QuikDrawers Limited Lifetime Warranty

Limited Lifetime Warranty

QuikDrawers Lifetime warranty is for defects in materials and craftsmanship for the original purchaser.  This limited lifetime warranty for QuikDrawers custom drawers has specific conditions and exclusions.  Please see Warranty Information page for details.


If you have questions about these options or specifications, just give us a call at

1-866-937-7429 (Mon-Fri 8am - 4pm cst)


*Some conditions apply.  Contact Sales for other details.
