Custom Solid Wood Drawer Boxes & Rollout Drawer Boxes

Item # 28035


Please Choose Or Scroll Down For More Info:












Starting at: $42.00  / Each

Add to Cart:

Product Description

Custom Solid Wood Drawer Boxes & Rollout Drawer Boxes
Beautifully Crafted, Furniture Grade, Custom Sized, Standard Drawer Boxes & Rollout Drawer Boxes Available In Multiple Wood Species

Current Production Lead Time For All Drawer Boxes/Rollouts 6 - 9 Business Days

FREE SHIPPING!!!*
(*Free Shipping At $1000 Or More & **Half Price Shipping At $750 Or More, On Orders Of These Solid Wood Drawers Or Rollouts.  Any Combination Of Size, Type, Or Species)
The Actual Price Per Drawer Box/Rollout Will Be Shown In Your Cart And Is Based On Size, Type, Wood Species & Options Selected

**These Are Custom Built Drawer Boxes/Rollouts & Cannot Be Returned For Refund Or Exchange**

If You Need Drawer Slides With Your Drawer Boxes, The Selection Of Slides Below Are Included In This Great Shipping Offer!
(Click Drawer Slide Images Below to Shop For Slides)

Epoxy European Slides

Select Your Drawer Box/Rollout Wood Species

Drawer Box Wood Species Options
Rustic White Birch:   )
  • Similar To White Birch But Has More Pronounced Color Variations, Knots, Or Other Natural Imperfections
  • Rustic White Birch Offers A More Rustic Aesthetic In Cabinetry & Furniture
White Birch:   )
  • A Blend Of Light, Creamy White Hues & Brownish Natural Streaks & Swirls In The Grain Pattern
  • White Birch Is Very Often Used In Cabinetry And Furniture
Rubberwood:   )
  • Light To Medium Brownish Red With A Yellowish Hue With A Blend Of Short "Speckled" & Long Flowing Grain Patterns
  • Frequently Used For Furniture & Cabinetry, Especially In Parts Of The World Where It Is Abundant
Aspen:   )
  • Light In Color, With Shades Ranging From White To Pale Yellow Generally With A Long, Straighter, Fine & Flowing Grain Pattern
  • Aspen Is A Softer Wood Species & Can Be A Little More Susceptible To Dents & Dings
  • Often Used For Furniture, Cabinetry, & Millwork Where A Light, Airy Appearance Is Desired
Hard Maple:   )
  • Light To Medium Blondish-Brown, Sometimes With A Golden Hue With Fine, Straight & Wavy Grain Pattern
  • One Of The Hardest & Most Durable Wood Species Available
  • Highly Sought After For High-Quality Cabinets, Furniture, & Flooring
All Material Used Is "Standard Grade" & Will Consist Of Natural Colors Of The Species Selected.  Mineral, Color & Grain Variation Is Allowed & Some Finger Joints May Be Visible On Top & Bottom Edge.  ALL Wood Species Will Be Built With Wood Staves To Mitigate Warpage & Achieve Your Drawer Box/Rollout Height.


Select Your Drawer Box/Rollout Type

Standard drawer box
Standard Drawer Box
Rollout Drawer In White Birch
Rollout
High back drawer box
High Back

Our Standard Drawer Box Is Perfect For New Construction Or Replacements For Missing Or Broken Drawer Boxes.

Our Rollout Drawer Is Designed For Any Storage Need With An Attractive Scoop Cut, "Galley Hand Pull".  Rollouts Can Be Used In Stacks & Under Counter Applications.
The Scoop Hand Pull Is 1"h x 5"w & Is Standard With Rollout Or High Back Rollout Drawer Boxes.
Our High Back Rollout Is Perfect For Taller "Tippy" Items & Has The Same Attractive Scoop Cut, "Galley Hand Pull" As Our Rollout Drawer.
When Ordering The High Back Drawer, The Height Of The Box You Order Is The Rear, "High Side", & Has A Minimum Of 6" Height. The Front Is 3" Regardless Of The Rear Height

Select Your Drawer Box/Rollout Bottom Panel Thickness
Plywood Drawer Box Bottoms
Dadoed Side For Bottom Panel
Stapled Bottom Panel

Optional Rear "Notching" For Undermount Concealed Slides
(Required For Use With Undermount Slides)
(Both The Notch & Bore Holes Fit Vitus, Blum, Hettich, Salice & Most Other Slide Brands)
Undermount Concealed Slide Notching With Slide Undermount Concealed Slide Notching Dimesions On Drawer Movento Undermount Concealed Slide Notching Dimesions On Drawer
Minimum Drawer Box/Rollout Width For Standard Undermount Slide Notching = 8"
Minimum Drawer Box/Rollout Width For BLUM "Movento" Undermount Slide Notching = 12 1/4"
Optional Undermount Concealed Slide Notching Is Based On Major Manufacturer's Industry Standard Requirements
(Selecting This Option Above Does NOT Include The Slide Harware)
We do NOT offer or perform custom notching or boring

Enter Your Drawer Box/Rollout Finished Dimensions

Drawer Boxes & Rollouts Are Built With Three Dimensional Factors
Order Your Finished/Outside/Exterior Dimensions In The Dropdowns
Drawer Box, Rollout & High Back Rollout Ordering Parameters
Dimension Minimum Maximum Increments
Height Standard Drawer Box = 2" 12"

2" Thru 12" In Whole Inch Increments
Fractional Exceptions = 2 1/2", 3 1/2" & 9 1/2"
Custom Heights Are NOT Available

Rollout Drawer Box = 2"
**NOTE: Our Plastic Door Bumpers For Side Mount Slides (T160 & T161) WILL NOT Work on 2" Tall Rollouts**
2" Thru 12" In Whole Inch Increments
Fractional Exceptions = 2 1/2", 3 1/2" & 9 1/2"
Custom Heights Are NOT Available
High Back Rollout = 6"
(You Are Ordering The Height Of The Rear Panel.  The Front Panel Will Be 3" High, No Matter The Rear Height)
6" Thru 12" In Whole Inch Increments
Fractional Exceptions = 9 1/2"
Custom Heights Are NOT Available
Width With "Side Mount Slides" - NO Notching = 4 1/2" 50 15/16" 1/16"
With "Undermount Concealed Slides" - STANDARD Notching = 8"
With Blum "Movento Undermount Concealed Slides" - MOVENTO Notching = 12 1/4"
Depth 6 1/2" 50 15/16" 1/16"

How To Measure For Standard Drawer Boxes

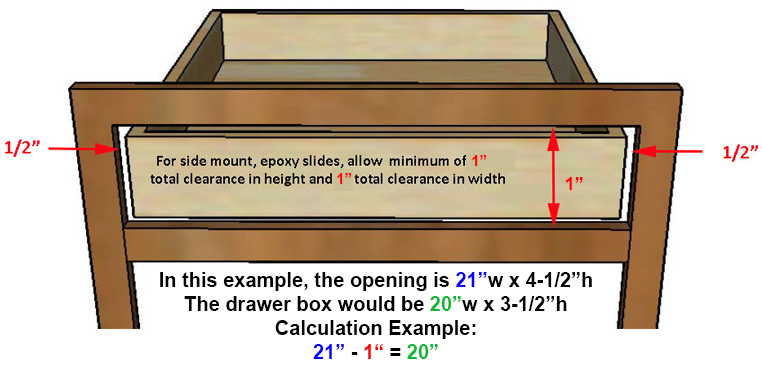

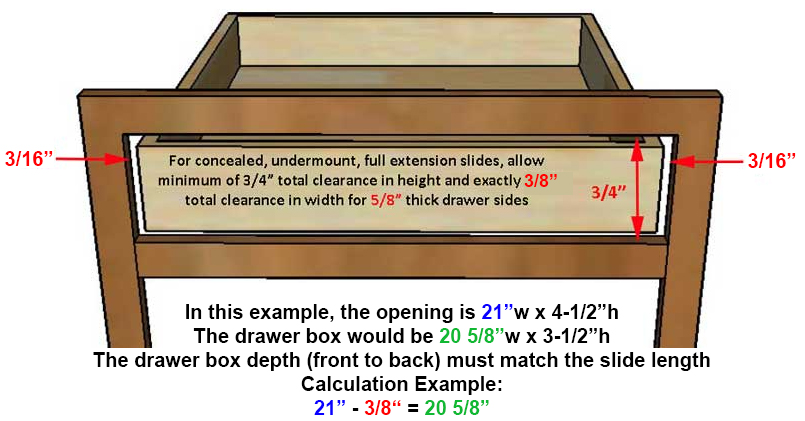

How to size drawer for use with concealed, undermount drawer slides How to size drawer for use with side mounted, full extension, ball bearing drawer slides How to size drawer for use with side mounted, epoxy, Euro Style drawer slides
Sizing drawer for use with concealed undermount, soft close slide Sizing drawer for use with side mounted, full extension, ball bearing slide Sizing drawer for use with side mounted, partial extension, Euro Style slide
Sizing the Depth For New or Replacement Drawer
How to size drawer for varying cabinet depths
(click image to open in new window)
QuikDrawers Drawer Box & Rollout Shelf Construction Standards
Some Companies Will Tell You That Dovetail Joints, Solid Wood & A UV Cured Clear Coat Finish Is Not Important...  That's Because They Can't Offer It, Especially At These Prices!
Furniture Grade Materials Dovetail Joints Plywood Bottom Panels UV Cured Clear Coat Finish
Solid Wood Sides & B-3 Grade Plywood Bottoms Offer Superior Strength & Beauty.  Our Drawer Box/Rollout Side Panels Are Assembled Using Solid Wood Staves (Strips Of Wood) To Acheive Your Desired Height.  Using Wood Staves Helps To Mitigate Any "Cupping/Warping" That A Wider Board May Be Susceptible To.  ALL Wood Species Will Be Built With Wood Staves To Mitigate Warpage & Achieve Your Drawer Box/Rollout Height. The "Dovetail" Joinery Method Has Been Around For Millenia Because It Is The Stongest, Most Durable, Joinery Method For Building Drawer Boxes And Many Other Constructions.  The Side Panels Actually "Lock" Into Each Other And Are Glued For Addtional Strength And Durability. Plywood Is The Stongest, Most Durable, Most Desirable, Material Used In Drawer Box Construction, For Bottom Panels.  Alot Of Manufacturers Use An MDF Or Masonite Panel, Wrapped In A Wood Grain Paper.  Our Plywood Bottom Panels Are Stronger, More Durable & Have A Real Wood Veneer With A UV Cured Clear Coat Finish, Which Helps To Prevent Moisture Absorption & Staining.  Our Drawer Boxes/Rollouts Are Prefinished With A UV Cured & Hardened, Satin Gloss, Clear Coat Catalyzed Varnish.  This Ensures That Your Drawer Boxes/Rollouts Are Sealed From Moisture And Ready To Perform.  The Clear Coat Is Fully Cured & Hardened When You Receive Your Order.
Every Drawer Box Or Rollout Is Branded... Your Guarantee Of Quality!
*Exception: Drawers & Rollouts Under 3" High Or With A Depth Over 24" Will Not Have A Logo*
(OEM & Trade Customers ONLY May Request "No Logo")
QuikDrawers Logo Branding
(Shown On White Birch)

Drawer boxes over 36" width or depth will be shipped at higher weights due to dimensional weight rules set by carriers

Choosing Drawer Slides for Your Drawer

If you are also changing drawer slides or adding a new drawer and you need some information about choosing drawer slides or how to size your drawer for your drawer slides, click on this link: Choosing drawer slides for your new or replacement drawer box

QuikDrawers Limited Lifetime Warranty

Limited Lifetime Warranty

QuikDrawers Lifetime warranty is for defects in materials and craftsmanship for the original purchaser.  This limited lifetime warranty for QuikDrawers custom drawers has specific conditions and exclusions.  Please see Warranty Information page for details.


If you have questions about these options or specifications, just give us a call at

1-866-937-7429 (Mon-Fri 9am - 4pm, central time)


*Some Conditions Apply.  Drawer Boxes/Rollouts May Be Combined With Other Hardware Items From The Vitus Brand ONLY To Qualify For Our Shipping Promos.  All Other Products Purchased Along With Drawer Boxes/Rollouts Will Be Charged Appropriate Shipping For Those Items.  Contact Sales For Other Details.  Read shipping guidelines.
