Custom Painted Solid Wood Slab Doors & Drawer Fronts

Custom Painted Solid Wood Slab Doors & Drawer Fronts

Get Your Slab Style Doors & Drawer Fronts Shipped Pre-Painted & Ready to Install!

Current Production Lead Time For Painted Doors & Drawer Fronts Is 20 - 22 Business Days
(All lead times are subject to variations in workload)

*The Door/Drawer Front Price Is Calculated Based On Your Selected Options & Dimension.  Add The Item To Your Cart To View The Price.

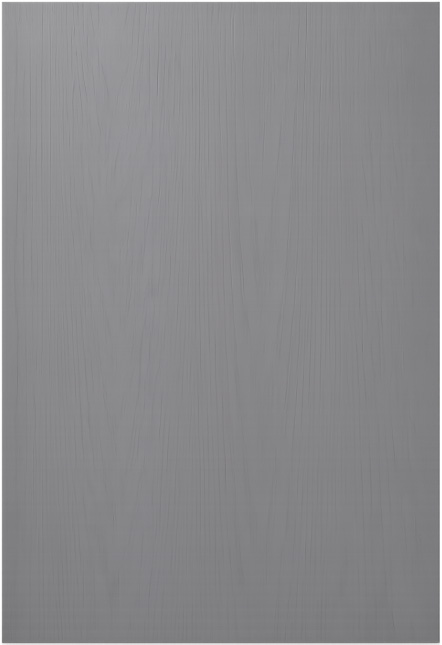

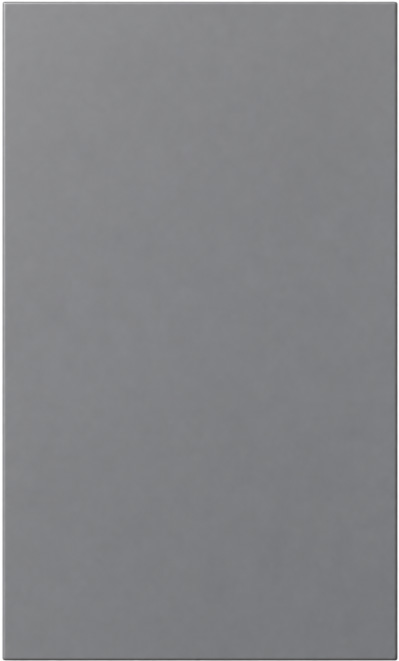

The illustration below represents a typical slab cabinet door and drawer front.

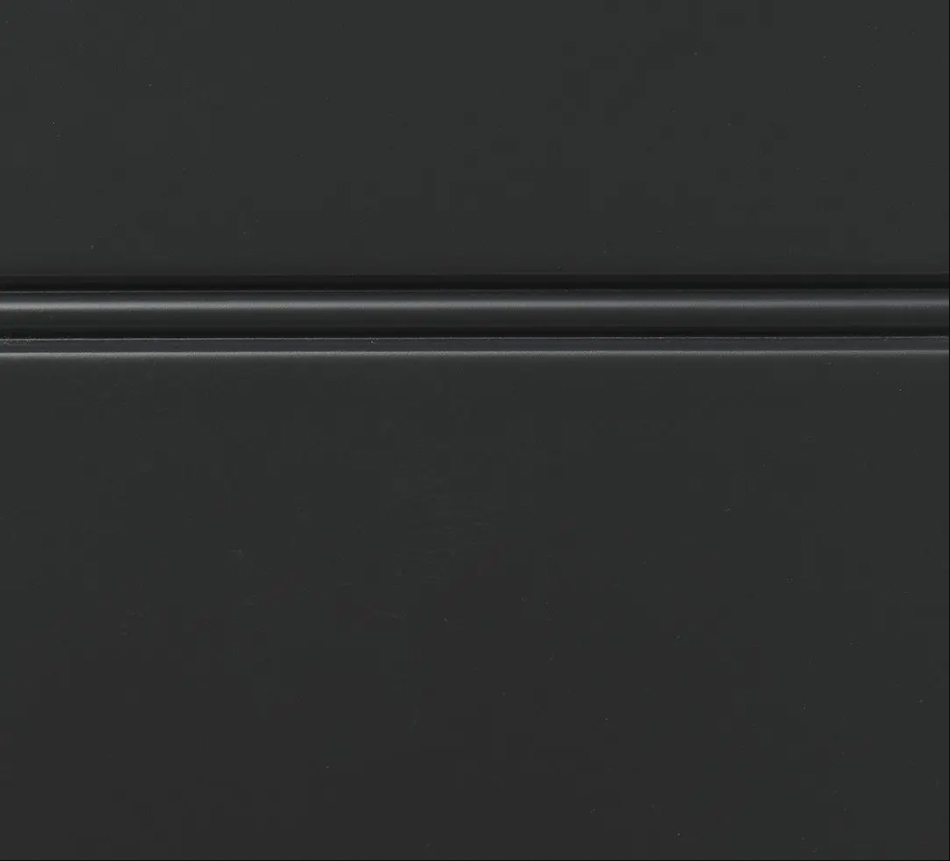

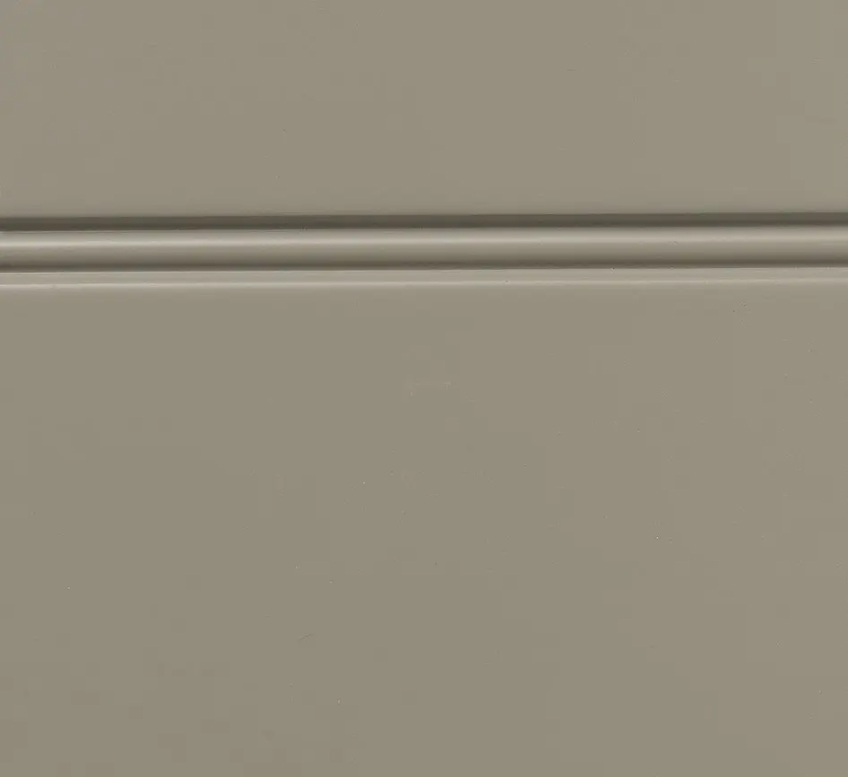

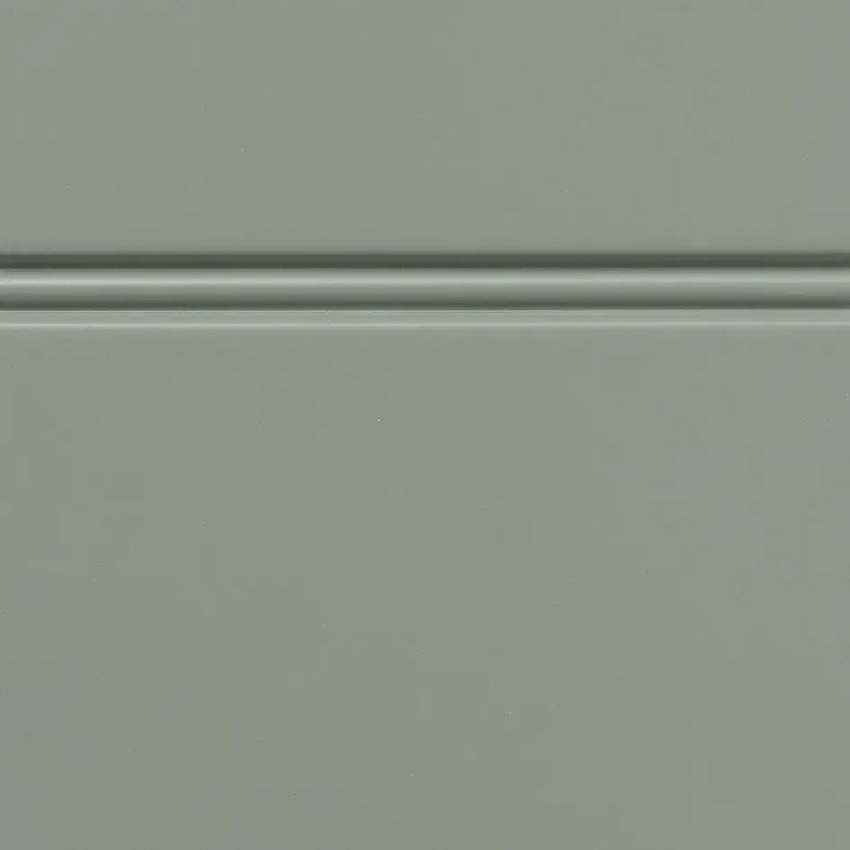

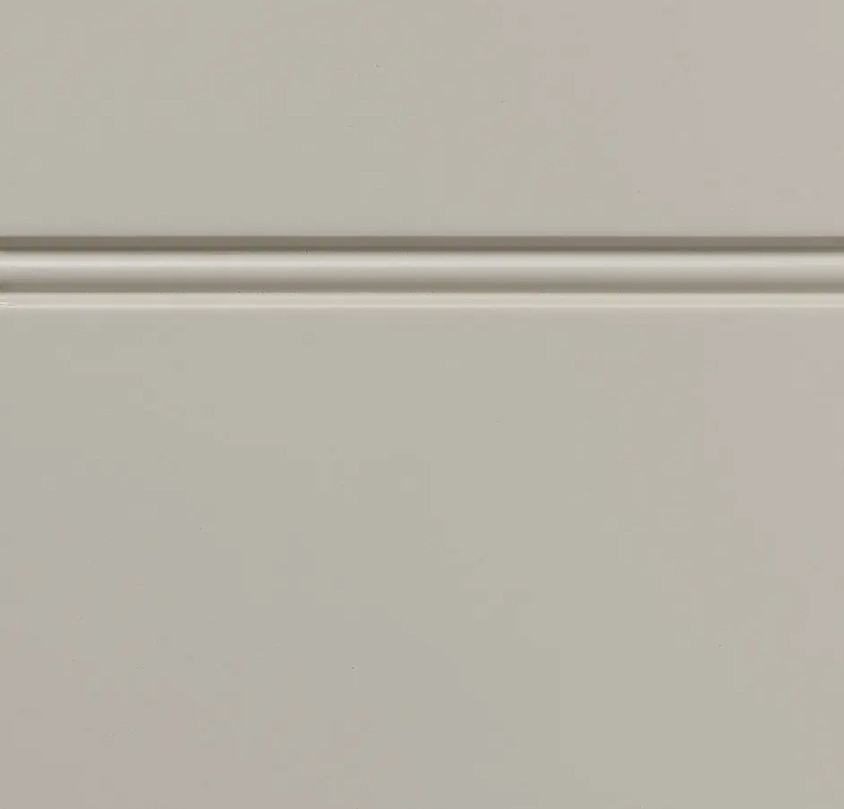

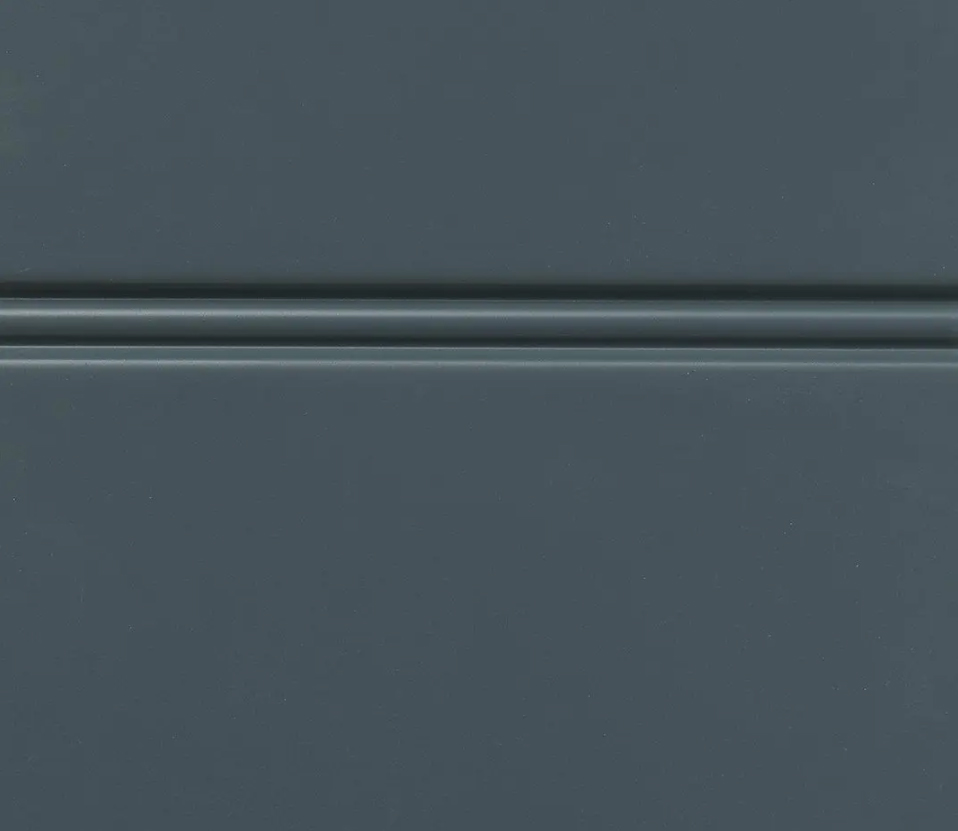

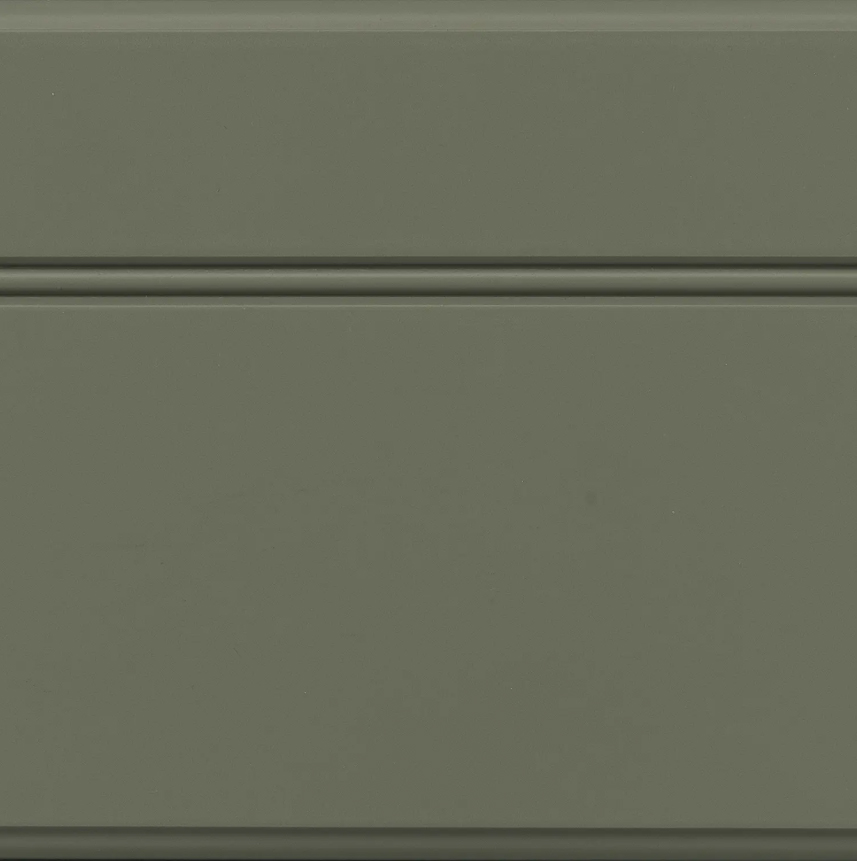

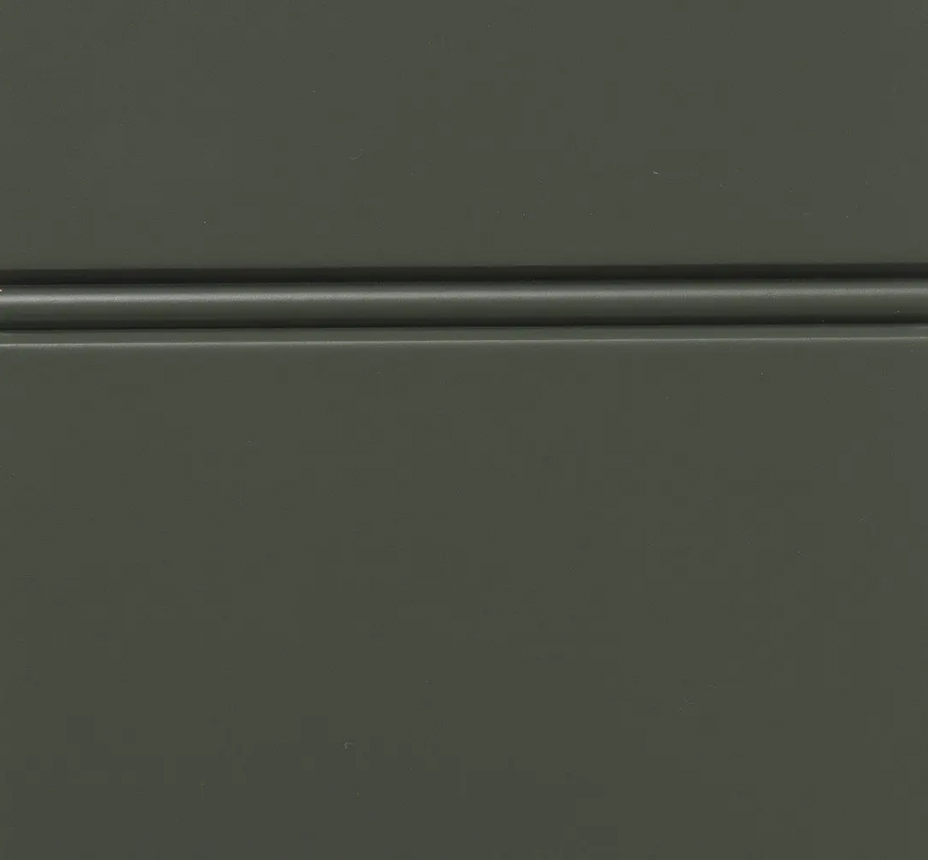

Finished cabinet doors and drawer fronts are sanded and finished with color coats and conversion varnish topcoats.  (see finishing specifications for details).  You may want to consider ordering a sample of your finish color/glaze combination.

Select Your Framing Edge
Use this reference guide to find your framing edge (outer edge of the door). Also note the available "Hinge Boring/Hinge Type" options for each profile.  Be sure to select the correct "Hinge Boring" option when placing doors in your cart. (see "Step 6:" for boring details)
	Profiles With NO Hinge Boring Options B NO Hinge Boring Rabbet 7/16" Deep - 3/8" High Bullnose NO Hinge Boring C NO Hinge Boring Rabbet 7/16" Deep - 3/8" High CFP NO Hinge Boring E NO Hinge Boring Rabbet 7/16" Deep - 3/8" High FP NO Hinge Boring H NO Hinge Boring Rabbet 7/16" Deep - 3/8" High L-021 NO Hinge Boring L-058 NO Hinge Boring L-061 NO Hinge Boring L-120 NO Hinge Boring L-392 NO Hinge Boring L-401 NO Hinge Boring L-534 NO Hinge Boring L-772 NO Hinge Boring L-780 NO Hinge Boring L-904 NO Hinge Boring L-946 NO Hinge Boring L-1120 NO Hinge Boring 5º Back Bevel Machine Edge w/ Rabbet NO Hinge Boring Rabbet 7/16" Deep - 3/8" High O NO Hinge Boring PRS NO Hinge Boring Rabbet 7/16" Deep - 3/8" High Round-2 NO Hinge Boring Sophisticate NO Hinge Boring V NO Hinge Boring Rabbet 7/16" Deep - 3/8" High
Profiles With ALL Hinge Boring Options CFP-2 "A", "B" & "C" Hinge Boring L-034 "A", "B" & "C" Hinge Boring L-059 "A", "B" & "C" Hinge Boring PRS-2 "A", "B" & "C" Hinge Boring LC-2 "A", "B" & "C" Hinge Boring   L-281 "A", "B" & "C" Hinge Boring L-149 "A", "B" & "C" Hinge Boring LC-Inset "A", "B" & "C" Hinge Boring V-2 "A", "B" & "C" Hinge Boring B-2 "A", "B" & "C" Hinge Boring            Machine Edge "A", "B" & "C" Hinge Boring L-1201 "A", "B" & "C" Hinge Boring L-109 "A", "B" & "C" Hinge Boring L-171 "A", "B" & "C" Hinge Boring L-297 "A", "B" & "C" Hinge Boring L-180 "A", "B" & "C" Hinge Boring L-382 "A", "B" & "C" Hinge Boring L-443 "A", "B" & "C" Hinge Boring L-538 "A", "B" & "C" Hinge Boring L-631 "A", "B" & "C" Hinge Boring L-687 "A", "B" & "C" Hinge Boring L-723 "A", "B" & "C" Hinge Boring L-746 "A", "B" & "C" Hinge Boring L-770 "A", "B" & "C" Hinge Boring L-785 "A", "B" & "C" Hinge Boring L-787 "A", "B" & "C" Hinge Boring L-803 "A", "B" & "C" Hinge Boring L-850 "A", "B" & "C" Hinge Boring L-894 "A", "B" & "C" Hinge Boring L-966 "A", "B" & "C" Hinge Boring L-967 "A", "B" & "C" Hinge Boring 5º Back Bevel L-977 "A", "B" & "C" Hinge Boring L-978 "A", "B" & "C" Hinge Boring L-996 "A", "B" & "C" Hinge Boring 5º Back Bevel L-997 "A", "B" & "C" Hinge Boring L-1003 "A", "B" & "C" Hinge Boring L-1057 "A", "B" & "C" Hinge Boring L-1099 "A", "B" & "C" Hinge Boring L-1117 "A", "B" & "C" Hinge Boring 5º Back Bevel L-1160 "A", "B" & "C" Hinge Boring     L-1169 "A", "B" & "C" Hinge Boring L-1194 "A", "B" & "C" Hinge Boring 5º Back Bevel L-981 "A", "B" & "C" Hinge Boring
Profiles With LIMITED Hinge Boring Options C-2 "B" & "C" Hinge Boring Only E-2 "B" & "C" Hinge Boring Only 5º Back Bevel H-2 "B" & "C" Hinge Boring Only 5º Back Bevel J-2 "B" & "C" Hinge Boring Only L-253 "B" & "C" Hinge Boring Only 5º Back Bevel   L-304 "B" & "C" Hinge Boring Only 5º Back Bevel L-686 "B" & "C" Hinge Boring Only 5º Back Bevel L-947 "B" & "C" Hinge Boring Only 5º Back Bevel L-1323 "B" & "C" Hinge Boring Only 5º Back Bevel
Some Edge Profiles Are NOT Recommended For Use With Euro, Demountable Or Inserta Style Hinges.  SEE HINGE BORING NOTES UNDER EACH PROFILE. Edges Displayed Above Are Computer Generated To Represent The Actual product As Closely As Possible But May Not Be Exact. If You Are Seeking An Exact Match, Contact Us For A Sample.

Select Hinge Boring

If you intend to use a concealed European style hinge, here are your boring options.  We normally recommend a Compact Style hinge if you have "Face Frame" style cabinets.  If you have any questions, just give us a call.

For FACE FRAME Style Cabinets

Compact Style Hinge "A" Boring For Compact Style Hinges Compact Hinge Bore With Dowel Inserts Select ("A" with) Placement Is 3" To Center From Top & Bottom Of Door Compact Hinge Bore Without Dowel Inserts Select ("A" without) Placement Is 3" To Center From Top & Bottom Of Door

Long Arm Style Hinges "B" Boring For Long Arm Style Hinges Long Arm Hinge Bore With Dowel Inserts Select ("B" with) Placement Is 3" To Center From Top & Bottom Of Door Long Arm Hinge Bore Without Dowel Inserts Select ("B" without) Placement Is 3" To Center From Top & Bottom Of Door

For FRAMELESS Style Cabinets Using Long Arm Hinges

Long Arm Style Hinges "C" Boring For Long Arm Style Hinges Long Arm Hinge Bore With Dowel Inserts Select ("C" with) Placement Is 3 3/4" To Center From Top & Bottom Of Door Long Arm Hinge Bore Without Dowel Inserts Select ("C" without) Placement Is 3 3/4" To Center From Top & Bottom Of Door Hinge Boring Standards Doors 8  13/16"h To 42"h Receive Two Bores Doors 42-1/16"h To 72"h Receive Three Bores Doors 72-1/16"h & Longer Receive Four Bores With Center Holes Set 25" In From Each End. *Custom Boring Locations (Vertically ONLY) Is Available At Additional Cost Per Door.  The Dimension From The Vertical Edge Cannot Be Changed As This Dimension Is Determined Specifically By The Hinge Type. (Contact Customer Service If You Need More Information - Read Line Below) (Select "Custom Boring (*Applicable Hinge Type)" In The Dropdown Menu) Dowel Inserts Are NOT Included With Any Door.  The Dowel Inserts Come With The Hinge Or Can Be Purchased Separately Hinge Boring Dimensional Specifications Bore Hole Is 35mm Diameter, 13.5mm Deep & The Insert Holes Are 8mm Diameter & 11.9mm Deep

For product warranty information, Click Here

Manufacturer's Product Warranty Information

Information About This Door Manufacturer's Product & Finishing Warranties

Allowable Tolerances For Bow, Warp Or Twist For "Single Panel", "Multi-Panel", "Frame Only" & Mullion Doors Are As Follows:

• Single Panel Up To 26" Wide And/Or 48" Tall - 1/8" Acceptable
• Multi-Panel Up To 26" Wide & 48-1/16" To 64-15/16" Tall - 1/4" Acceptable
• Multi-Panel Up To 26" Wide & 65" To 83-15/16" Tall - 5/16" Acceptable
• Single Panel, Single Opening "Frame Only" & "Mullion" Doors Over 26" Wide And/Or 48" Tall Will NOT Be Warranted ("Mullion Lites" Not To Be Included In Panel Count)
• Any Door Exceeding 25-15/16" Wide Or 83-15/16" High Will NOT Be Warranted

Allowable Tolerances For Contraction, Expansion & Warpage For One & Three Piece Products Are:

• Up To 12" Wide & 21-15/16" High - 1/8" Acceptable
• 12-1/16" To 22" Wide Or 22" To 43-15/16" High - 1/4" Acceptable
• Any One Piece Product Exceeding 22" Wide Or 43-15/16" High Will NOT Be Warranted
• All Three Piece Products Over 30" Wide & 14" High Are NOT Warranted

Special Handling Charges For Oversize Products

Shipping Companies Do Charge Extra For "Oversize" Packages Or Packages That Exceed Certain Lengths Or Other Measurements.

If Your Product Is Going To Incur Additional Charges, We Will Get A Shipping Quote Prior To Finalizing Your Order.  The Shipping Shown On Your Order May Or May Not Include These "Oversize" Charges.  We Will Notify You Prior To Placing Your Order In Production.

FedEx Oversize Packages

Packages That Weigh 150 Pounds Or Less & Exceed 108 Inches In Length Or 130 Inches In "Girth" ((2 x width) + (2 x height)) Are Considered “Oversize” Packages. Oversize Packages Are Rated Based On The Greater Of The Package's Actual Rounded Weight Or Dimensional Weight. All Oversize Packages Will Have A Minimum Billable Weight Of 90 Pounds In Addition To Any Oversize Package Surcharge(s).  As of 2020, This Surcharge Will Be $120 Per Oversize Package.

Fedex Peak Oversize Package Surcharge

During Peak Shipping Season (10/21/xx until 1/5/xx), Any Package Shipped During This Period Will Incur An Additional "Peak Oversize" Charge Of $37.50 Per Oversize Package.

UPS Oversize Packages

A Large Package Surcharge Will Be Applied To Each UPS Package When Its Length Plus "Girth" ((2 x width) + (2 x height)) Combined Exceeds 130 Inches, But Does Not Exceed The Maximum UPS Size Of 165 Inches. Large Packages Are Subject To A Minimum Billable Weight Of 90 Pounds In Addition To Any Oversize Package Surcharge(s).  As Of 2020, This Surcharge Will Be $115 Per Oversize Package.

Address Changes For FedEx & UPS

Both FedEx & UPS Charge For Address Changes & Corrections.  The Charge For An Address Change Is A Minimum Of $16.00 As Of 1/1/2019.  Please Check Your Shipping Address On Your Order Confirmation To Insure That It Is Correct.  The Cabinet Guy/QuikDrawers Is NOT Responsible For Incorrect Addresses.

If You Have Any Specific Questions, Let Us Know Or Refer Directly To The Carrier Websites For More Information.
