Custom Sized Painted Louver Cabinet Doors

Item #26619

Please Choose Or Scroll Down For More Info:












Starting at: $192.99 / Each

Add to Cart:
Product Description

Add Timeless Style With Our Custom Sized "Closed/Solid" Louver Cabinet Doors. Pre-Painted And Ready To Install.

Current Lead Time:  20 - 24 Business Days For Production
(All lead times are subject to variations in workload)

Closed/Solid Louver Doors
Available Painted or Unfinished

Important General Information About Painted "Closed/Solid" Louver Doors

  • Wood Material Used: Paint Grade Hard Maple

  • Door Thickness: 3/4" Thick

  • Rails (Horizontal Frame Pieces): Varies - 2" Thru 2  13/16" On Visible Face Surface (Based On Overall Door Height)
Closed/Solid Louver Door Details
Custom Wood Solid Louver Cabinet Door
Door Specifications
Louvered Doors With The "Closed" Louver Look
Air & Light Will Not Pass Through The Door
Built With Solid Wood Outer Frames & Solid Wood "Louvered Panel" Center Panel Staves (See Crosscut Image Below)

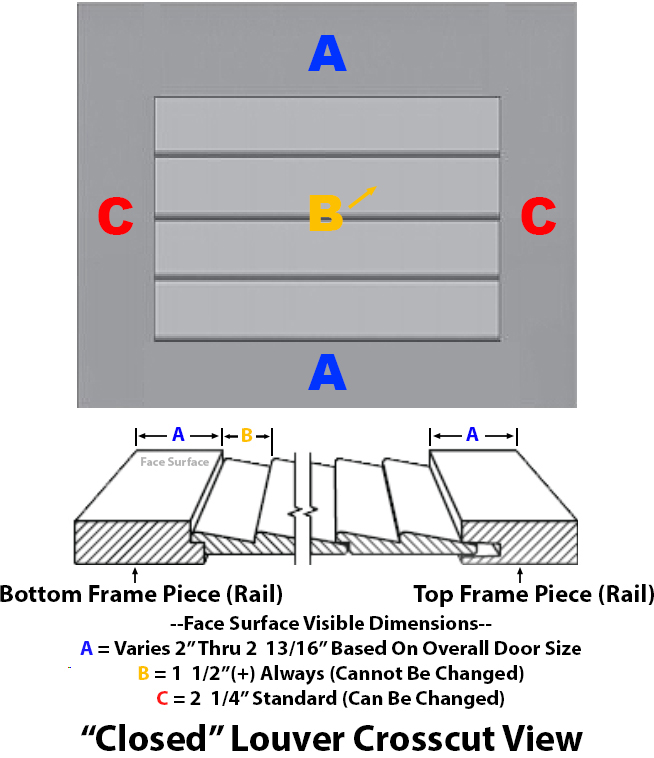

Custom Wood Solid Louver Cabinet Door
(("B")Slat Width Appearance From The Face View = 1.531")
Dimensional Specifications
Minimum Door Width 7  1/2"
Minimum Door Height
(See Step 3 Below For Hinge Boring Options)		 7  1/2" For "NO" Hinge Boring
8 13/16" For "A" & "B" Hinge Boring
10" For "C" Hinge Boring
Center Panel Raise N/A
Inner Frame Edge Design Specific (Cannot Be Changed)
Outer Frame Edge Options Available (Image Above Shows "Machine Edge")
Grain Direction N/A
Outer Frame Width Specifications
Stiles (Vertical Frame Pieces) 2  1/4" Default (Can Be Changed)
IMPORTANT NOTE: (2  1/8" Minimum With Hinge Boring)
Rails (Horizontal Frame Pieces) Varies - 2" Thru 2  13/16" On Visible Face Surface
(Based On Overall Door Height)
Mid-Rail Width Equal To Top & Bottom Rail Widths**
**Based On The Overall Height Of The Door, Sometimes The Midrail Width Cannot Be Exactly Equal To The Top & Bottom Rails.
By Default, We Will Work To Match The Midrail Dimension ToThe Top & Bottom Rail Dimension.**

Choose Your Paint Color
(Click On The Color For A Larger Image)
Note:  Glazes are NOT available on louvered doors
Colourtones Antique White
Antique White		 Colourtones Arctic White
Arctic White		 Colourtones Cadet Grey
Cadet Grey		 Colourtones Crystal White
Crystal White		 Colourtones Designer White
Designer White
Colourtones Ebony
Ebony		 Colourtones Fern
Fern		 Colourtones Frosty White
Frosty White		 Colourtones Gunsmoke
Gunsmoke		 Colourtones Hearthstone Grey
Hearthstone Grey
Colourtones Heron
Heron		 Colourtones Marina
Marina		 Colourtones Metropolitan Grey
Metropolitan Grey		 Colourtones Regent Blue
Regent Blue


Select Your Framing Edge
Use this reference guide to find your framing edge (outer edge of the door). Also note the available "Hinge Boring/Hinge Type" options for each profile.  Be sure to select the correct "Hinge Boring" option when placing doors in your cart. (see "Step 6:" for boring details)
Profiles With NO Hinge Boring Options
B Framing Edge
Bullnose Framing Edge
 C Framing Edge
CFP Framing Edge
E Framing Edge
B
NO Hinge Boring
Rabbet 7/16" Deep - 3/8" High
Bullnose
NO Hinge Boring
 C
NO Hinge Boring
Rabbet 7/16" Deep - 3/8" High
CFP
NO Hinge Boring
E
NO Hinge Boring
Rabbet 7/16" Deep - 3/8" High
FP Framing Edge
H Framing Edge
L-021 Framing Edge
L-058 Framing Edge
 L-061 Framing Edge
FP
NO Hinge Boring
H
NO Hinge Boring
Rabbet 7/16" Deep - 3/8" High
L-021
NO Hinge Boring
L-058
NO Hinge Boring
L-061
NO Hinge Boring

L-120 Framing Edge
 L-392 Framing Edge
L-401 Framing Edge
L-534 Framing Edge
L-772 Framing Edge
L-120
NO Hinge Boring
 L-392
NO Hinge Boring
L-401
NO Hinge Boring
L-534
NO Hinge Boring
L-772
NO Hinge Boring
L-780 Framing Edge
L-904 Framing Edge
L-946 Framing Edge
L-1120 Framing Edge
 Machine Edge w/ Rabbet Framing Edge
L-780
NO Hinge Boring
L-904
NO Hinge Boring
L-946
NO Hinge Boring
L-1120
NO Hinge Boring
5º Back Bevel
 Machine Edge w/ Rabbet
NO Hinge Boring
Rabbet 7/16" Deep - 3/8" High
O Framing Edge
PRS Framing Edge
Round-2 Framing Edge
Sophisticate Framing Edge
V Framing Edge
O
NO Hinge Boring
PRS
NO Hinge Boring
Rabbet 7/16" Deep - 3/8" High
Round-2
NO Hinge Boring
Sophisticate
NO Hinge Boring
V
NO Hinge Boring
Rabbet 7/16" Deep - 3/8" High
 Profiles With ALL Hinge Boring Options
CFP-2 Framing Edge
 L-034 Framing Edge
L-059 Framing Edge
PRS-2 Framing Edge
LC-2 Framing Edge
CFP-2
"A", "B" & "C" Hinge Boring
L-034
"A", "B" & "C" Hinge Boring
L-059
"A", "B" & "C" Hinge Boring
PRS-2
"A", "B" & "C" Hinge Boring
LC-2
"A", "B" & "C" Hinge Boring
L-281 Framing Edge
L-149 Framing Edge
LC-2 Framing Edge
B-2 Framing Edge
L-281
"A", "B" & "C" Hinge Boring
L-149
"A", "B" & "C" Hinge Boring
LC-Inset
"A", "B" & "C" Hinge Boring
V-2
"A", "B" & "C" Hinge Boring
B-2
"A", "B" & "C" Hinge Boring
  Machine Edge Framing Edge
L-1201 Framing Edge
  L-109 Framing Edge
 L-171 Framing Edge
Machine Edge
"A", "B" & "C" Hinge Boring
L-1201
"A", "B" & "C" Hinge Boring
L-109
"A", "B" & "C" Hinge Boring
L-171
"A", "B" & "C" Hinge Boring
L-297
"A", "B" & "C" Hinge Boring
L-180 Framing Edge
L-382 Framing Edge
L-443 Framing Edge
L-538 Framing Edge
L-631 Framing Edge
L-180
"A", "B" & "C" Hinge Boring
L-382
"A", "B" & "C" Hinge Boring
L-443
"A", "B" & "C" Hinge Boring
L-538
"A", "B" & "C" Hinge Boring
L-631
"A", "B" & "C" Hinge Boring
L-687 Framing Edge
L-723 Framing Edge
L-746 Framing Edge
L-770 Framing Edge
L-785 Framing Edge
L-687
"A", "B" & "C" Hinge Boring
L-723
"A", "B" & "C" Hinge Boring
L-746
"A", "B" & "C" Hinge Boring
L-770
"A", "B" & "C" Hinge Boring
L-785
"A", "B" & "C" Hinge Boring
L-787 Framing Edge
L-803 Framing Edge
L-850 Framing Edge
L-894 Framing Edge
L-966 Framing Edge
L-787
"A", "B" & "C" Hinge Boring
L-803
"A", "B" & "C" Hinge Boring
L-850
"A", "B" & "C" Hinge Boring
L-894
"A", "B" & "C" Hinge Boring
L-966
"A", "B" & "C" Hinge Boring
L-967 Framing Edge
L-977 Framing Edge
L-978 Framing Edge
L-996 Framing Edge
L-997 Framing Edge
L-967
"A", "B" & "C" Hinge Boring
5º Back Bevel
L-977
"A", "B" & "C" Hinge Boring
L-978
"A", "B" & "C" Hinge Boring
L-996
"A", "B" & "C" Hinge Boring
5º Back Bevel
L-997
"A", "B" & "C" Hinge Boring
L-1003 Framing Edge
L-1057 Framing Edge
L-1099 Framing Edge
L-1117 Framing Edge
L-1160 Framing Edge
L-1003
"A", "B" & "C" Hinge Boring
L-1057
"A", "B" & "C" Hinge Boring
L-1099
"A", "B" & "C" Hinge Boring
L-1117
"A", "B" & "C" Hinge Boring
5º Back Bevel
L-1160
"A", "B" & "C" Hinge Boring
L-1169 Framing Edge
L-1194 Framing Edge
L-981 Framing Edge


L-1169
"A", "B" & "C" Hinge Boring
L-1194
"A", "B" & "C" Hinge Boring
5º Back Bevel
L-981
"A", "B" & "C" Hinge Boring


Profiles With LIMITED Hinge Boring Options
C-2 Framing Edge
E-2 Framing Edge
H-2 Framing Edge
J-2 Framing Edge
L-253 Framing Edge
C-2
"B" & "C" Hinge Boring Only
E-2
"B" & "C" Hinge Boring Only
5º Back Bevel
H-2
"B" & "C" Hinge Boring Only
5º Back Bevel
J-2
"B" & "C" Hinge Boring Only
L-253
"B" & "C" Hinge Boring Only
5º Back Bevel
L-304 Framing Edge
L-686 Framing Edge
L-947 Framing Edge
L-1323 Framing Edge

L-304
"B" & "C" Hinge Boring Only
5º Back Bevel
L-686
"B" & "C" Hinge Boring Only
5º Back Bevel
L-947
"B" & "C" Hinge Boring Only
5º Back Bevel
L-1323
"B" & "C" Hinge Boring Only
5º Back Bevel


Some Edge Profiles Are NOT Recommended For Use With Euro, Demountable Or Inserta Style Hinges.  SEE HINGE BORING NOTES UNDER EACH PROFILE.
Edges Displayed Above Are Computer Generated To Represent The Actual product As Closely As Possible But May Not Be Exact. If You Are Seeking An Exact Match, Contact Us For A Sample.

Select Hinge Boring
If you intend to use a concealed European style hinge, here are your boring options.  We normally recommend a Compact Style hinge if you have "Face Frame" style cabinets.  If you have any questions, just give us a call.
For FACE FRAME Style Cabinets
Compact Style HingeCompact style hinge for Boring type "A"
"A" Boring For Compact Style Hinges
Hinge bore pattern for compact hinge with dowel inserts
Hinge bore pattern for compact hinges without dowel inserts
Compact Hinge Bore With Dowel Inserts
Select ("A" with)
Placement Is 3" To Center From Top & Bottom Of Door
Compact Hinge Bore Without Dowel Inserts
Select ("A" without)
Placement Is 3" To Center From Top & Bottom Of Door
Long Arm Style HingesLong arm style hinge for hinge boring type "B" & "C"
"B" Boring For Long Arm Style Hinges
Hinge bore pattern for long arm hinge with dowel inserts for face frame cabinets
Hinge bore pattern for long arm hinge without dowel inserts for face frame cabinets
Long Arm Hinge Bore With Dowel Inserts
Select ("B" with)
Placement Is 3" To Center From Top & Bottom Of Door
Long Arm Hinge Bore Without Dowel Inserts
Select ("B" without)
Placement Is 3" To Center From Top & Bottom Of Door
For FRAMELESS Style Cabinets Using Long Arm Hinges
Long Arm Style HingesLong arm style hinge for hinge boring type "B" & "C"
"C" Boring For Long Arm Style Hinges
Hinge bore pattern for long arm hinge with dowel insert holes
Hinge bore pattern for long arm hinge without dowel insert holes
Long Arm Hinge Bore With Dowel Inserts
Select ("C" with)
Placement Is 3 3/4" To Center From Top & Bottom Of Door
Long Arm Hinge Bore Without Dowel Inserts
Select ("C" without)
Placement Is 3 3/4" To Center From Top & Bottom Of Door
Hinge Boring Standards
Doors 8  13/16"h To 42"h Receive Two Bores
Doors 42-1/16"h To 72"h Receive Three Bores
Doors 72-1/16"h & Longer Receive Four Bores With Center Holes Set 25" In From Each End.

*Custom Boring Locations (Vertically ONLY) Is Available At Additional Cost Per Door.  The Dimension From The Vertical Edge Cannot Be Changed As This Dimension Is Determined Specifically By The Hinge Type.
(Contact Customer Service If You Need More Information - Read Line Below)
(Select "Custom Boring (*Applicable Hinge Type)" In The Dropdown Menu)

Dowel Inserts Are NOT Included With Any Door.  The Dowel Inserts Come With The Hinge Or Can Be Purchased Separately
Hinge Boring Dimensional Specifications
Bore Hole Is 35mm Diameter, 13.5mm Deep & The Insert Holes Are 8mm Diameter & 11.9mm Deep


Need A Mid-Rail?
Adding A Mid-Rail Is Meant To Offer Additional Support To An Oversized Door, Drawer Front Or Panel, Which Will Help To Mitigate Door Warpage Due To The Overall Dimensions Of The Door, Drawer Front Or Panel.
(See "Manufacturer's Product Warranty Information" Below For Acceptable Warpage Tolerances)
Horizontal Mid-Rails
Single Horizontal Mid-Rail

We Recommend Adding A SINGLE HORIZONTAL MID-RAIL When The Door/Panel Is Between 48" & 60" Tall

And A DOUBLE HORIZONTAL MID-RAIL When The Door/Panel Is Between 60" & 96" Tall

Doors Shorter Than 48" Do Not Typically Require A Mid-Rail.  You Are Welcome To Add One If That Is The Look You Are Trying To Achieve.
Double Horizontal Mid-Rail
Vertical Mid-Rails
Doors
Single Vertical Mid-Rail

We Recommend Adding A SINGLE VERTICAL MID-RAIL When The Door Is Between 24" & 36" Wide

We Recommend Adding A DOUBLE VERTICAL MID-RAIL When The Door Is Greater Than 36" Wide

Doors Narrower Than 24" Do Not Typically Require A Mid-Rail.  You Are Welcome To Add One If That Is The Look You Are Trying To Achieve.

 Double Vertical Mid-Rail
Drawer Fronts

Typically, Drawer Fronts Will Not Require A Mid-Rail.  However, On Larger/Oversized Drawer Fronts, It Is Good Practice To Use A Mid-Rail When The Drawer Box Is Less Than Or Equal To 1/2 The Height Of The Drawer Front.

You Are Welcome To Add One If That Is The Look You Are Trying To Achieve.

Add Routed Finger Pulls?
(priced per door)

Finger pull routing provides a clean, handle-free look while still giving you an easy way to open the door. It’s ideal for modern or minimalist cabinetry and eliminates the need for knobs or pulls.
Fingerpull rout selections
(Click to enlarge)		 Hand Pull Specifications:
  • Hand pull routs are on the back side of the door and are minimally noticeable from a front view.
  • Specify location: Bottom left (BL), Bottom Right (BR), Bottom Center (BC), Top Left (TL), Top Right (TR) or Top Center (TC)
  • Rout is 3-5/8" wide and 3/8" deep
  • When specified as Right or Left location, the rout begins 3" from the edge of door
  • Rout is centered on doors less than 10" wide
  • Not available with the following edge profiles: E-2, FP, L-253, L-304, L-686, L-947 and RC-2
  • Adds one day to lead time

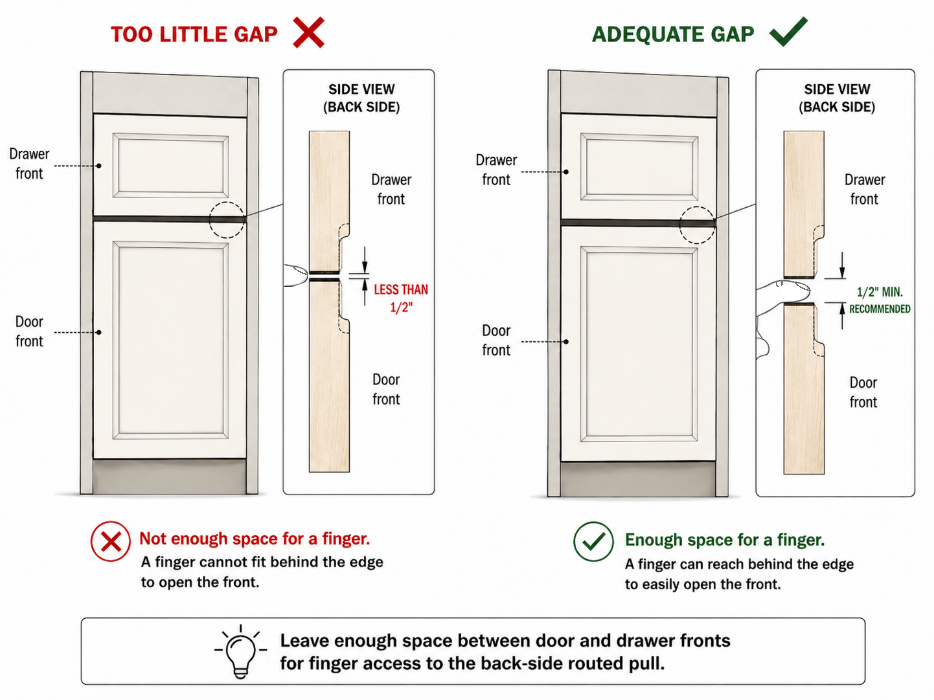

Important Note: Because the finger pull is routed into the back side of the door and/or drawer front, adequate spacing must be provided between adjacent doors and/or drawer fronts. The gap must be large enough to allow your finger to reach behind the edge and comfortably operate the pull.  We recommend a minimum 1/2" spacing between two adjacent edges where finger pull routing is applied.


Enter Your Dimensions
Use The Dropdowns To Input Your Door Or Drawer Front, Height & Width Dimensions.
See The "Specifications", At The Top Of The Page, For Minimum Dimension Requirements.
Be Sure To Input Your FINAL/FINISHED Dimensions.
The Dimensions You Input Will Be The Dimensions Manufactured.

Measuring for new or replacement cabinet doors and drawers
(Click On The Image Above For Measuring Guide)


Review Manufacturer's Warranty/Tolerances & Exception Charges
Warranty
Information About Manufacturer's Product & Finishing Warranties
Manufacturer's Allowable Tolerances

Allowable Tolerances For Bow, Warp Or Twist For "Single Panel", "Multi-Panel", "Frame Only" & "Mullion" Products Are As Follows:

Single Panel Up To 26" Wide And/Or 48" Tall - 1/8" Acceptable
Multi-Panel Up To 26" Wide & 48-1/16" To 64-15/16" Tall - 1/4" Acceptable
Multi-Panel Up To 26" Wide & 65" To 83-15/16" Tall - 5/16" Acceptable
Single Panel, Single Opening "Frame Only" & "Mullion" Products Over 26" Wide And/Or 48" Tall Will NOT Be Warranted ("Mullion Lites" Not To Be Included In Panel Count)
Any Product Exceeding 25-15/16" Wide Or 83-15/16" High Will NOT Be Warranted

Allowable Tolerances For Contraction, Expansion & Warpage For One & Three Piece Products Are As Follows:

Up To 12" Wide & 21-15/16" High - 1/8" Acceptable
12-1/16" To 22" Wide Or 22" To 43-15/16" High - 1/4" Acceptable
Any One Piece Product Exceeding 22" Wide Or 43-15/16" High Will NOT Be Warranted
All Three Piece Products Over 30" Wide & 14" High Are NOT Warranted

Finishing Notes

When Ordering Unfinished, Products Should Be Properly Prepared Prior To Applying Any Finishing Products.  Be Sure To Read & Understand The Instructions Provided By Your Finish Manufacturer.  You May Need To Perform Additional Sanding To Prepare Your Products For Finishing.
Special Handling Charges For Oversized Products

Shipping Companies Do Charge Extra For "Oversize" Packages Or Packages That Exceed Certain Lengths Or Other Measurements.

If Your Product Is Going To Incur Additional Charges, We Will Get A Shipping Quote Prior To Finalizing Your Order.  The Shipping Shown On Your Order May Or May Not Include These "Oversize" Charges.  We Will Notify You Prior To Placing Your Order In Production.

FedEx Oversize Packages

Packages That Weigh 150 Pounds Or Less & Exceed 108 Inches In Length Or 130 Inches In "Girth" ((2 x width) + (2 x height)) Are Considered “Oversize” Packages. Oversize Packages Are Rated Based On The Greater Of The Package's Actual Rounded Weight Or Dimensional Weight. All Oversize Packages Will Have A Minimum Billable Weight Of 90 Pounds In Addition To Any Oversize Package Surcharge(s).  As of 2020, This Surcharge Will Be $120 Per Oversize Package.

Fedex Peak Oversize Package Surcharge

During Peak Shipping Season (10/21/xx until 1/5/xx) Any Package Shipped Will Incur An Additional "Peak Oversize" Charge Of $37.50 Per Oversize Package.

UPS Oversize Packages

A Large Package Surcharge Will Be Applied To Each UPS Package When Its Length Plus "Girth" ((2 x width) + (2 x height)) Combined Exceeds 130 Inches, But Does Not Exceed The Maximum UPS Size Of 165 Inches. Large Packages Are Subject To A Minimum Billable Weight Of 90 Pounds In Addition To Any Oversize Package Surcharge(s).  As Of 2020, This Surcharge Will Be $115 Per Oversize Package.

Address Changes For FedEx & UPS

Both FedEx & UPS Charge For Address Changes & Corrections.  The Charge For An Address Change Is A Minimum Of $16.00 As Of 1/1/2019, But Can Be Upwards Of $800.00 Or More.
Please Check Your Shipping Address On Your Order Confirmation To Ensure That It Is Correct.
The Cabinet Guy/QuikDrawers Is NOT Responsible For Incorrect Addresses.

If You Have Any Specific Questions, Let Us Know Or Refer Directly To The Carrier Websites For More Information.
