QuikDrawers QuikTRAY 5 Shelf "All N One Pantry Kit" (HARD MAPLE)

Item #28959


Please Choose Or Scroll Down For More Info:
















Starting at: $694.92 / Kit

Add to Cart:

Product Description

Scroll Down For Step-By-Step Ordering Instructions & "Kit" Information


QuikDrawers Solid Wood Hard Maple "All N One" Pantry Rollout Kits

For Cabinet Openings Up To 16 15/16" Wide



The QuikDrawers 5-Shelf "All N One" Pantry Kit Gives You Everything You Need To Upgrade Your Pantry Or Linen Cabinet Storage With Beautiful Solid Wood Rollout Shelves.
Featuring The Innovative QuikTRAY Adjustable Rollout System, Which Allows You To Easily Adjust Your Rollout Shelf Heights - No Tools, No Hassle!!

**NOTE: The QuikTRAY System Is Not Designed To Be Attached To Drywall.  Modification May Be Needed, In The Project Area, If You Intend To Use This System With Drywall Enclosures.**


Current Production Lead Time For All Drawer Boxes/Rollouts 5 - 7 Business Days
**These Are Custom Built Drawer Boxes/Rollouts & Cannot Be Returned For Refund Or Exchange**


How To Order

Download & Print Out Your “All N One Pantry Kit” Worksheets
Identify Which Worksheet To Use For Your Cabinet Type

SINGLE Opening Cabinet Worksheet
(Click Image Below To Download Worksheet)

QuikDrawers QuikTRAY All N One Kit One Opening Worksheet

DOUBLE Opening Cabinet Worksheet
(Click Image Below To Download Worksheet)

QuikDrawers QuikTRAY All N One Kit Two Opening Worksheet

The Worksheet Above Is Used For Single Opening Cabinets.  The Cabinet May Have One Door Or Two Doors, But Will Be A Single Opening, With No Divider, Allowing Access To The Interior Space Through Only One Opening.

As This Cabinet Type Has Only One Opening, You Will Be Quoted With One “Kit”.

The Worksheet Above Is Used For Two Opening Cabinets.  The Cabinet Will Have Two Doors With A Divider Allowing Access To The Interior Space Through Two Openings.

As This Cabinet Type Has Two Openings, You Will Be Quoted With Two “Kits”.

(If You Wish To Use Rollouts In Only One Of The Two Openings, You Can Simply Mark “N/A” On The Appropriate Worksheet Dimensions,  But You MUST Still Use The Worksheet Above.)

When Completing Your Worksheets, Please Do Not Make Any Special Considerations Or Overthink The System.  Simply Provide The Requested Measurements, As Accurately As Possible, In 1/16” (.0625) Increments.

Review The Measuring Instructions For The “All N One Kit” Worksheets
We Recommend That You Review The Measuring Instructions, Prior To Completing Your Worksheets, So You Can Confidently Provide Correct Measurements

QuikDrawers QuikTRAY All N One Kit One Opening Measuring Instructions
Measuring Instructions For SINGLE Opening Cabinets
(Click The Link Above To Open The Instructions)

QuikDrawers QuikTRAY All N One Kit Two Opening Measuring Instructions
Measuring Instructions For DOUBLE Opening Cabinets
(Click The Link Above To Open The Instructions)

Review Your "All N One Kit" Options For Your Worksheet Selections
YOU'VE GOT OPTIONS!!
There Are Many Options Available To Completely Customize Your "All N One Kit".

Review The Options Below To Help Choose Your Perfect Wood Species, Rollout Type, Rollout Height And Drawer Slides.
Select Your Rollout Wood Species

Drawer Box/Rollout Wood Species Options

Rustic White Birch:   )
  • Similar To White Birch But Has More Pronounced Color Variations, Knots, Or Other Natural Imperfections
  • Rustic White Birch Offers A More Rustic Aesthetic In Cabinetry & Furniture
White Birch:   )
  • A Blend Of Light, Creamy White Hues & Brownish Natural Streaks & Swirls In The Grain Pattern
  • White Birch Is Very Often Used In Cabinetry And Furniture
Rubberwood:   )
  • Light To Medium Brownish Red With A Yellowish Hue With A Blend Of Short "Speckled" & Long Flowing Grain Patterns
  • Frequently Used For Furniture & Cabinetry, Especially In Parts Of The World Where It Is Abundant
Aspen:   )
  • Light In Color, With Shades Ranging From White To Pale Yellow Generally With A Long, Straighter, Fine & Flowing Grain Pattern
  • Aspen Is A Softer Wood Species & Can Be A Little More Susceptible To Dents & Dings
  • Often Used For Furniture, Cabinetry, & Millwork Where A Light, Airy Appearance Is Desired
Hard Maple:   )
  • Light To Medium Blondish-Brown, Sometimes With A Golden Hue With Fine, Straight & Wavy Grain Pattern
  • One Of The Hardest & Most Durable Wood Species Available
  • Highly Sought After For High-Quality Cabinets, Furniture, & Flooring
All Material Used Is "Standard Grade" & Will Consist Of Natural Colors Of The Species Selected.  Mineral, Color & Grain Variation Is Allowed & Some Finger Joints May Be Visible On Top & Bottom Edge.  ALL Wood Species Will Be Built With Wood Staves To Mitigate Warpage & Achieve Your Drawer Box/Rollout Height.
Select Your Rollout Type

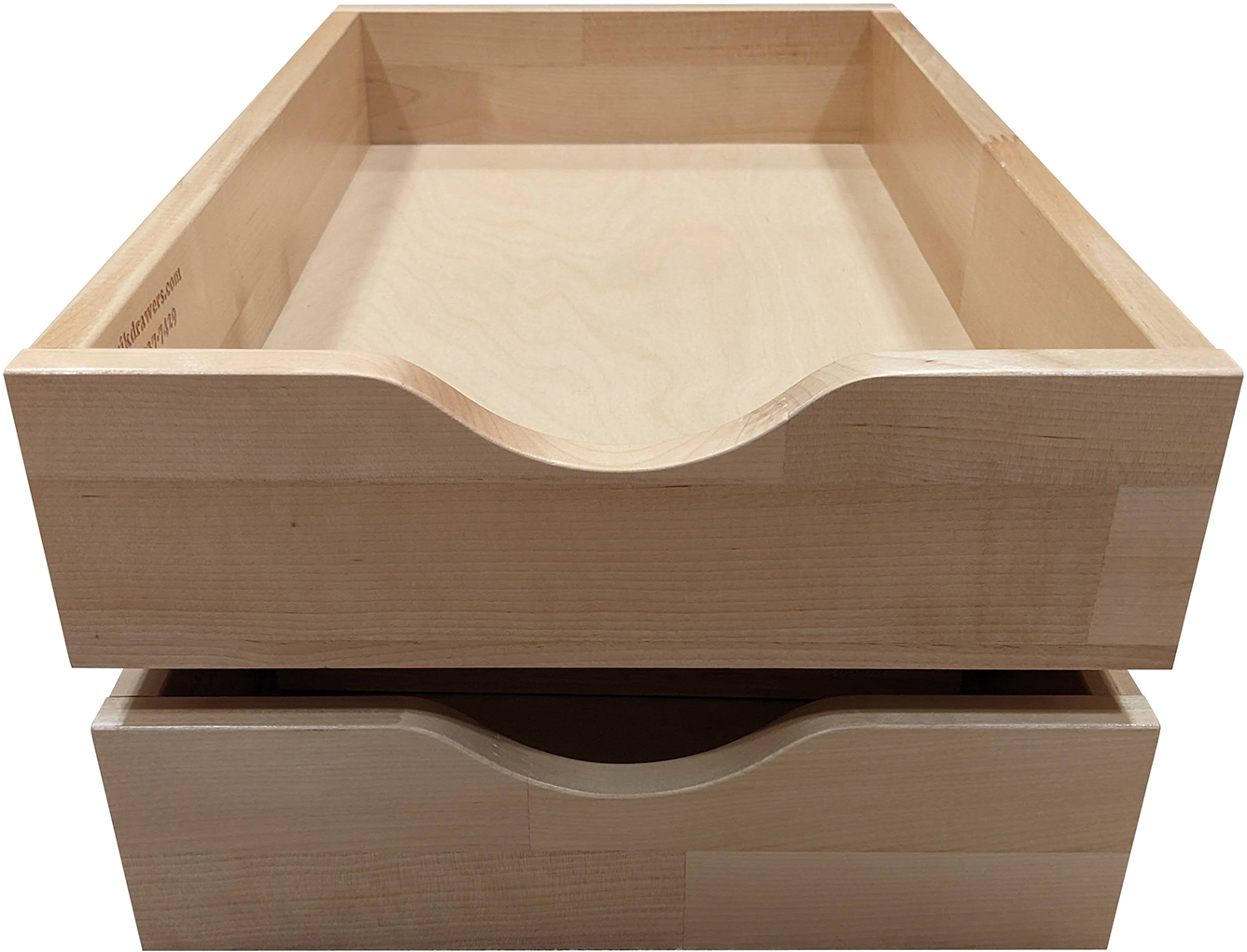

Standard Rollout Drawer In White Birch

Standard Rollout

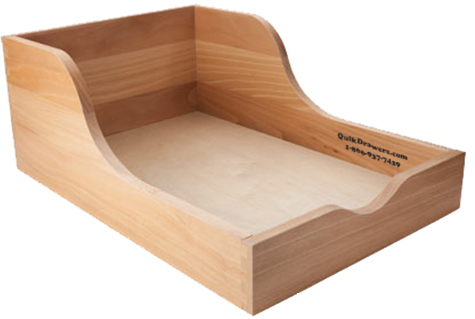

High Back Rollout Drawer In White Birch

High Back Rollout
The "Standard Rollout" Is Our Most Popular Style & Is A Perfect Solution For Most Applications.
All Sides Of The "Standard Rollout" Are The Same Height.
Our "High Back Rollout" Is Typically Used For Taller "Tippy" Items And Would Help To Prevent Items From Falling/Tipping Out Of The Rollout.
When Ordering The "High Back", The Height You Select Is For The Rear/Back Panel Only.
The Front Panel Will ALWAYS Be 3" High, No Matter The Height Of The Rear/Back Panel.
Available Height Options Available Height Options
2",  2 1/2"(2.50),  3",  3 1/2"(3.50),  4",  5",  6",  7",  8",  9",  9 1/2"(9.50),  10",  11",  Or 12".
(The Most Popular Height Is 3 1/2")
6",  7",  8",  9",  9 1/2" (9.50),  10",  11",  Or 12".
(The Most Popular Height Is 6")
Both The "Standard Rollout" & The "High Back Rollout" Have The Scoop Cut "Galley Hand Pull" & Is Automatically Applied To The Front Panel.
The Scoop Cut "Galley Hand Pull" Is 1"h x 5"w & Is Centered On The Front Panel.
Select Your Rollout Bottom Panel Thickness
Plywood Drawer Box Bottoms      Dadoed Side For Bottom Panel      Stapled Bottom Panel
Select Your Drawer Slide Type


Side Mount Ball Bearing Slides


Undermount Concealed Slides
  • Will Be Seen On The Side Of The Rollout Drawer When The Rollout Is Extended Outward
  • Will Fully Extend Up To Its Entire Length When Extended Outward
  • 100 Lbs Load Capactiy
  • Can Be Used In Either Frameless/European Style Or Face Frame Style Cabinets
  • Also Available With Soft-Close Feature Upgrade (Select "Side Mount Soft Close")
  • Offers A Deeper (Front To Back), But Narrower Rollout Vs The Undermount Concealed Slides
  • Will Not Be Seen On The Side Of The Rollout Drawer When The Rollout Is Extended Outward
  • Will Fully Extend Up To Its Entire Length When Extended Outward
  • 100 Lbs Load Capacity
  • Can Be Used In Either Frameless/European Style Or Face Frame Style Cabinets
  • Features "Soft Close, Self-Close" Mechanism For Smooth Operation
  • Offers A Wider, But Less Deep (Front To Back) Rollout Vs The Side Mount Ball Bearing Slides
  • Ultra Smooth Forward & Backward "Gliding" Action

Complete & Submit Your Worksheets

Once You Have Reviewed The Measuring Instructions & Completed Your Worksheets, Please Scan Or Take A Picture Of Your Worksheets With Your Phone And Email Them Back To Us At QuikQuotes@QuikDrawers.com.  You Can Also Fax Your Worksheets To QuikDrawers At (866) 642-9971.

Based On Your Submitted Worksheet Dimensions, We Will Calculate Your Rollout Dimensions & The Needed QuikTRAY System Components.

Worksheets Received By 2pm CST Are Usually Processed The Same Day

Watch Your Email For Your Quote & "Kit" Details

After We Process Your Worksheets, We Will Email You Your Quote & All Of The Details Of Your Kit.

If You Are Not Already Registered On QuikDrawers.com, We Will Setup Your Account And Build Your Cart For You Based On The Specifications We Send In Your Quote Email.

If You Are Already Registered On QuikDrawers.com, We Will Build Your Cart For You Based On The Specifications Sent In Your Quote Email.

Once You Receive Your Quote, You Can Simply Login & Proceed To Your Cart For Checkout.

Worksheets Received By 2pm CST Are Usually Processed & Quoted The Same Day


Included In The 5 Shelf "All N One" Pantry Kit
2 Shelf "All N One Kit" Rollouts - White Birch
Shown In White Birch
  • (5) Rollout Drawer Boxes

    • Two Rollout "Style" Options Available
      • "Standard" Rollout (Consistent Height On All Sides)
      • "High Back" Rollout (3" Front Panel - Sloped Side Panels - 6"h Thru 12"h Back Panel (Make Your High Back Height Selection In The Dropdown Menu))

    • Convenient "Scooped" Hand Pull
    • Select Any Height, Available In The Dropdown Menu, To Best Suit Your Storage Needs. (Default Height For All Rollouts Is 3 1/2" (3.50))
    • Multiple Wood Species Options Available In The Dropdown Menu (QuikDrawers Defaults To "White Birch" For Quoting)
      • Rustic White Birch
      • White Birch
      • Rubberwood
      • Aspen
      • Hard Maple
"All N One Kit" Side Mount Ball Bearing Slides
Side Mount Ball Bearing Slides
  • (5) Sets Of Full Extension Drawer Slides

    • Three Options Available
      • Standard/Manual Closing Side Mount Ball Bearing Slides
      • Soft Closing Side Mount Ball Bearing Slides
      • Soft Closing Undermount/Concealed Slides

Undermount/Concealed Slides

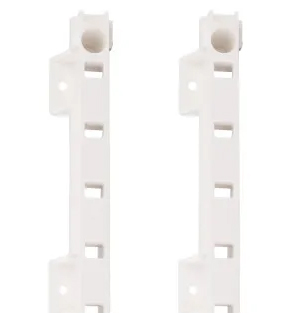

QuikTRAY Pilasters - White
White

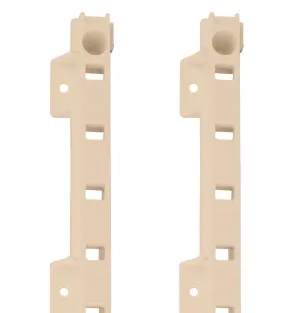

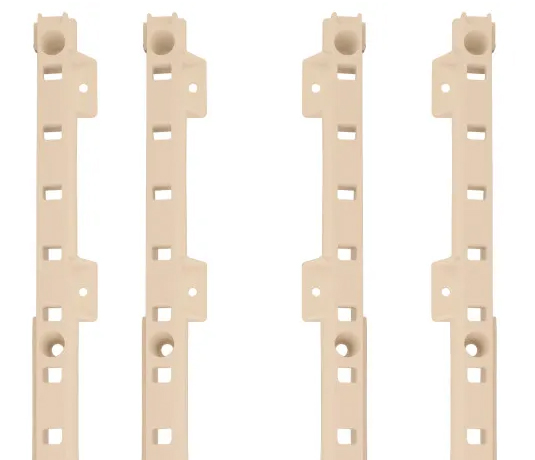

QuikTRAY Pilasters - Beige
Beige

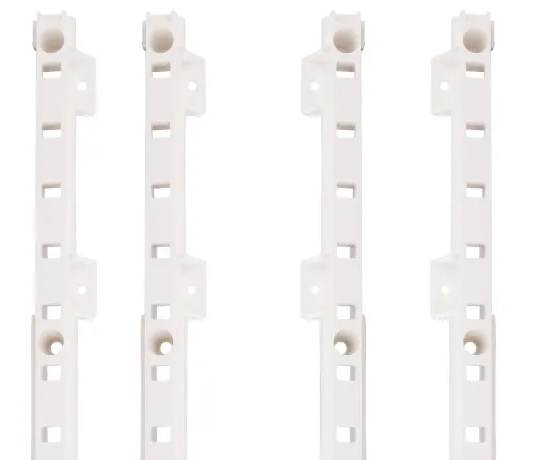

  • (3) Sets Of QuikTRAY Pilasters

    • Each Set Includes (4) Pilasters
    • Each Set Is 20 1/8" (20.125) Tall
      • Can Be Stacked To Acheive Taller System Heights
      • Can Be Trimmed, On Your Project Site, To The Desired Height

    • Available In Two Colors
      • White
      • Beige

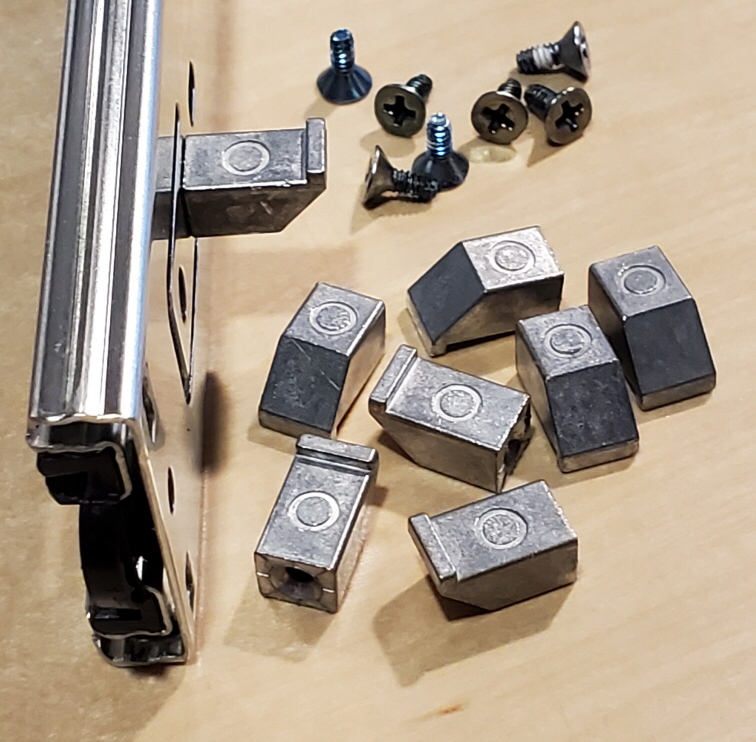

Side Mount
(T-506)

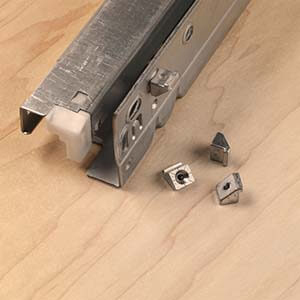

QuikTRAY Hook Dowels on Undermount Slide
Undermount/Concealed (T-508)
  • (20) QuikTRAY Hook Dowels With Screws

    • Enough To Install (5) Rollouts
    • Needed Hook Dowel Model Determined By Selected Drawer Slide Type

*Hook Dowels are not threaded and may require use of pliers to hold the hook dowel when attaching to the drawer slide.

QuikTRAY Side Mount Bumper
Side Mount

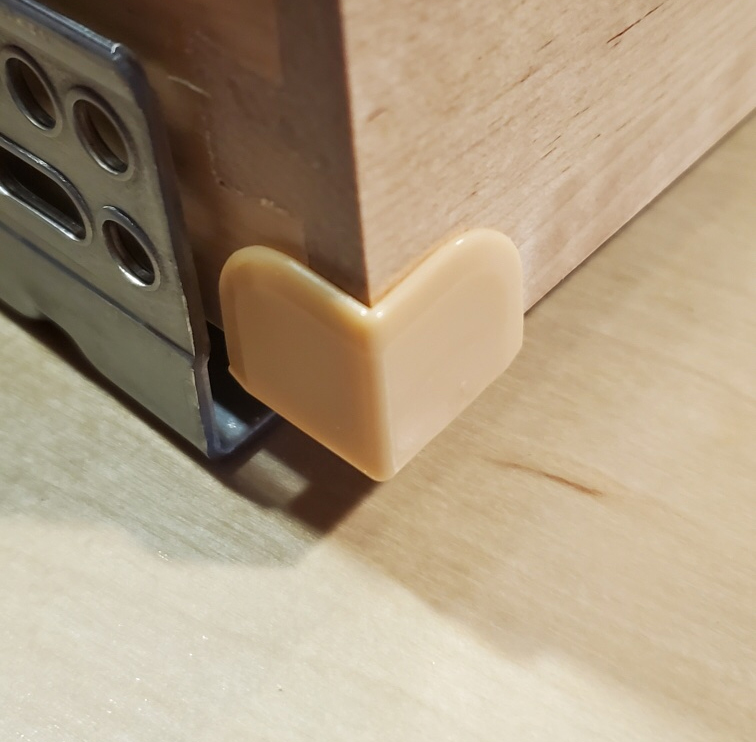

QuikTRAY Undermount Bumper
Undermount/Concealed
  • Rollout Door Protection Bumpers

    • Used To Protect The Back Side Of Your Doors From Scratching/Gouging Due To Contact With Rollout Or Drawer Slides
    • Number Of Bumpers Included Determined Based On Number Cabinet Doors
      • (5) Bumpers For Single Door Cabinets
      • (10) Bumpers For Double Door Cabinets

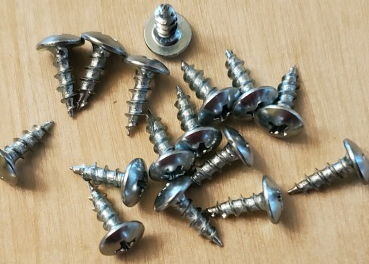

QuikTray Pilaster Screws
  • Installation Screws

QuikDrawers Drawer Box & Rollout Shelf Construction Standards
Some Companies Will Tell You That Dovetail Joints, Solid Wood & A UV Cured Clear Coat Finish Is Not Important...  That's Because They Can't Offer It, Especially At These Prices!
Furniture Grade Materials Dovetail Joints Plywood Bottom Panels UV Cured Clear Coat Finish
Solid Wood Sides & B-3 Grade Plywood Bottoms Offer Superior Strength & Beauty.  Our Drawer Box/Rollout Side Panels Are Assembled Using Solid Wood Staves (Strips Of Wood) To Acheive Your Desired Height.  Using Wood Staves Helps To Mitigate Any "Cupping/Warping" That A Wider Board May Be Susceptible To.  ALL Wood Species Will Be Built With Wood Staves To Mitigate Warpage & Achieve Your Drawer Box/Rollout Height. The "Dovetail" Joinery Method Has Been Around For Millenia Because It Is The Stongest, Most Durable, Joinery Method For Building Drawer Boxes And Many Other Constructions.  The Side Panels Actually "Lock" Into Each Other And Are Glued For Addtional Strength And Durability. Plywood Is The Stongest, Most Durable, Most Desirable, Material Used In Drawer Box Construction, For Bottom Panels.  Alot Of Manufacturers Use An MDF Or Masonite Panel, Wrapped In A Wood Grain Paper.  Our Plywood Bottom Panels Are Stronger, More Durable & Have A Real Wood Veneer With A UV Cured Clear Coat Finish, Which Helps To Prevent Moisture Absorption & Staining.  Our Drawer Boxes/Rollouts Are Prefinished With A UV Cured & Hardened, Satin Gloss, Clear Coat Catalyzed Varnish.  This Ensures That Your Drawer Boxes/Rollouts Are Sealed From Moisture And Ready To Perform.  The Clear Coat Is Fully Cured & Hardened When You Receive Your Order.
Every Drawer Box Or Rollout Is Branded... Your Guarantee Of Quality!
*Exception: Drawers & Rollouts Under 3" High Or With A Depth Over 24" Will Not Have A Logo*
(OEM & Trade Customers ONLY May Request "No Logo")
QuikDrawers Logo Branding
(Shown On White Birch)

QuikDrawers Limited Lifetime Warranty

Limited Lifetime Warranty

QuikDrawers Lifetime warranty is for defects in materials and craftsmanship for the original purchaser.  This limited lifetime warranty for QuikDrawers custom drawer boxes & rollout drawer boxes has specific conditions and exclusions.  Please see Warranty Information page for details.


If you have questions about these options or specifications, just give us a call at

1-866-937-7429 (Mon-Fri 9am - 4pm, central time)


*Some Conditions Apply.  Drawer Boxes/Rollout Drawer Boxes May Be Combined With Other Hardware Items From The Vitus Brand ONLY To Qualify For Our Shipping Promos.  All Other Products Purchased Along With Drawer Boxes/Rollout Drawer Boxes Will Be Charged Appropriate Shipping For Those Items.  Contact Sales For Other Details.  Read shipping guidelines.


"All N One Kit" Orders With 2-3 Rollouts Typically Ship Via Standard Parcel Services. "All N One Kit" Orders With 4 Or More Rollouts, Or *Large Kit Sizes, May Ship Via Freight Carrier And May Require An Appointment For Delivery. Final Shipping Cost Calculated At Checkout.

*Kits Beginning At 35"-37 15/16" or Higher Are Considered Large Kits And May Ship Freight Based On Options Selected
