Lama 110° Long Arm Hinges - 0mm Crank

Item # 26668


Please Choose Or Scroll Down For More Info:





Starting at: $3.02  / Each

Add to Cart:

Product Description

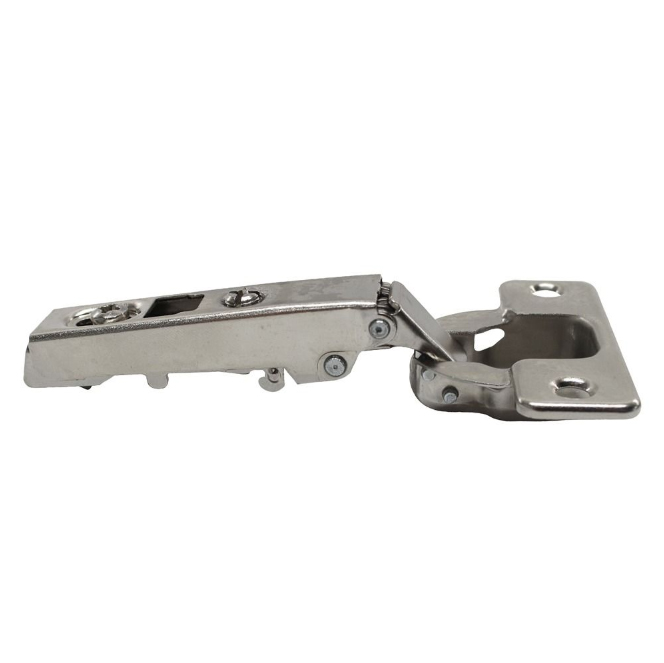

Lama Clip-on or Long Arm Hinges
(0mm Crank)

These full overlay 110° degree hinges with their mounting plates (sold separately) can be used in either a frameless cabinet or on face frame cabinet .  These high quality hinges just clip on to the mounting plates which are mounted on the cabinet.  This makes placement and removal of the doors extremely convenient.  The Lama hinge can also be used as replacement for the Jfh hinge.

When You Buy You Save
10 10%
50 20%
100+ 40%

This hinge requires a mounting plate (sold seperately).

The 0mm crank hinge is the general use hinge and is used for most cabinet door applications with an overlay of 3/8" to 3/4".  This hinge may be marked with "Made in Slovenia" and the number 1458 on the back side of the large "cup" of the hinge.

Do I need Press-on or Screw-on hinges?

Standard hinge installation screws work well in solid wood stock and plywood, but screws lose strength in medium density fiberboard (MDF) or particleboard. If your cabinet doors or cases are made from these materials, you may want to choose hinges that include barbed plastic inserts that fit in predrilled holes. Tightening the installation screw pushes each dowel against the wall of the hole for a firm grip.

Back side of press-on hinge - note the dowels Back side of screw-on hinge - no dowels
Picture of press-on type hinge, back side Picture of screw-on type hinge, back side
Cabinet door prepared for press-on hinges Cabinet door prepared for screw-on hinges
Picture of reverse side of cabinet door, prepared for press-on type hinge, note the additional dowel holes bored next to the mortise cup Picture of reverse side of cabinet door, prepared for screw-on type hinge, there is only the mortise cup bored
Note:  The press-on type hinge was developed for the manufacturers as a way to automatically align hinges and place them on the cabinet door in the proper location by just "pressing" them into the holes.  The dowels in that case are already mounted.  If you are replacing this type of hinge, you can get either type of hinge and either use the new dowels (which are already attached to the hinge) or you can use the screw-on and just use the screws already in your doweled door.

Mounting plates sold seperately.

Sold each
Minimum purchase 4

"How to" page for calculating hinge overlay

Questions? Visit the Cabinet Hinge Glossary
